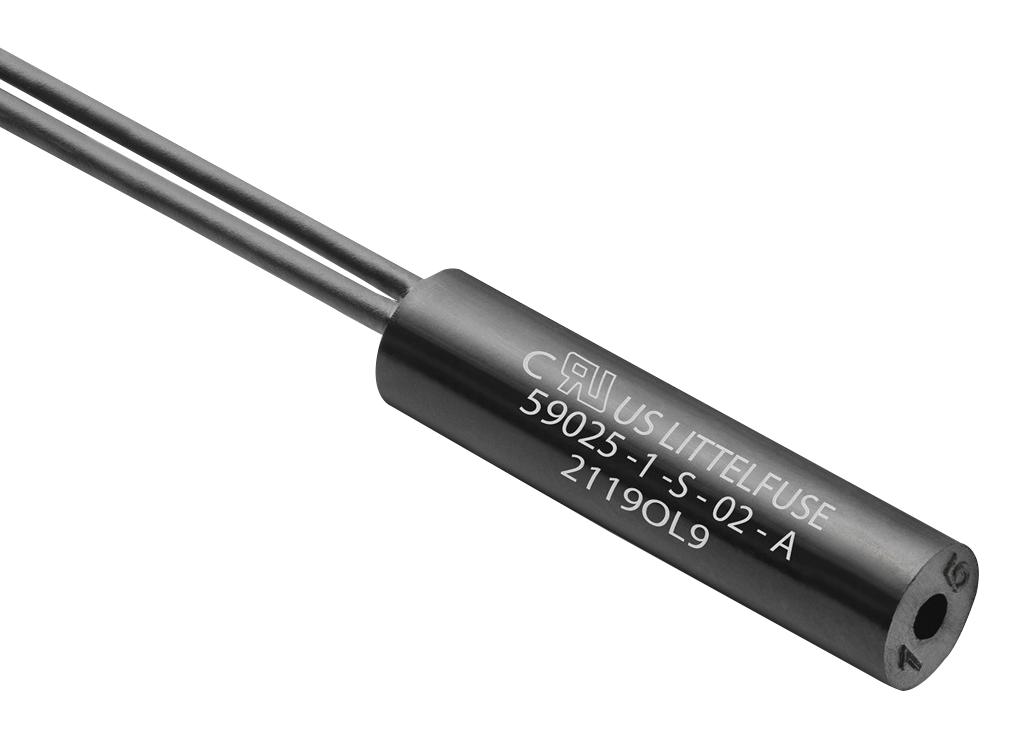

Littelfuse 590252U05A Reed Sensor
The 59025 Reed Sensor is a compact, hermetically sealed cylindrical reed switch designed for reliable non-contact switching in wet and harsh environments. It is suitable for security, factory automation, and process equipment, offering options for normally open, normally closed, or change-over contacts. Capable of switching up to 265 Vac/300 Vde at 10 VA, it functions effectively through non-ferrous materials like plastic or aluminum. Its UL Recognized and REACH compliant features ensure safety and environmental standards, making it ideal for IoT proximity sensing applications.
Littelfuse 590252U05A Reed Sensor Specifications:
- Dimensions: 25.4 mm (L) x 6.22 mm (Dia.) (1.00" x 0.245")
- Housing Material: 30% GF PBT Black Epoxy
- Sealing: Hermetically sealed, P67 rated
- Operating Voltage: up to 265 Vac / 300 Vde
- Switching Power: 10 VA at 265 Vac
- Contact Types: Normally open, normally closed, change-over
- Contact Rating: Max 10 VA / 10 W
- Operate Time: max 1.0 ms
- Release Time: max 1.0 ms
- Operating Temperature: -40°C to +105°C
- Shock Resistance: max 100 G
- Vibration Resistance: max 30 G (50-2000 Hz)
- Standards: UL Recognized, REACH compliant
- Wire Options: Standard cable with customization available
- Switching Voltage: up to 265 Vac
- Applicable Loads: Major appliances, small appliances, proximity sensors
Buy the Littelfuse Series 59025 Reed Sensor: 59025U05A
Purchase the Littelfuse Series 59025 Reed Sensor online today for dependable, hermetically sealed non-contact switching solutions suitable for harsh environments. Its compact design, multiple contact options, and high voltage capabilities make it ideal for security, automation, and IoT proximity sensing. Easy to install with standard cable options, this sensor ensures reliable operation in industrial, appliance, and process control applications. Enhance your projects by ordering this high-quality reed sensor online now for fast delivery and outstanding performance.
Order your Littelfuse Series 59025 Reed Sensor today and ensure reliable non-contact switching for your industrial and IoT applications.
Frequently Asked Questions
Where can I buy Littelfuse 590252U05A?
You can click on the BUY or RFQ button to purchase 590252U05A from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 590252U05A?
You can download the 590252U05A datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 590252U05A?
Littelfuse
