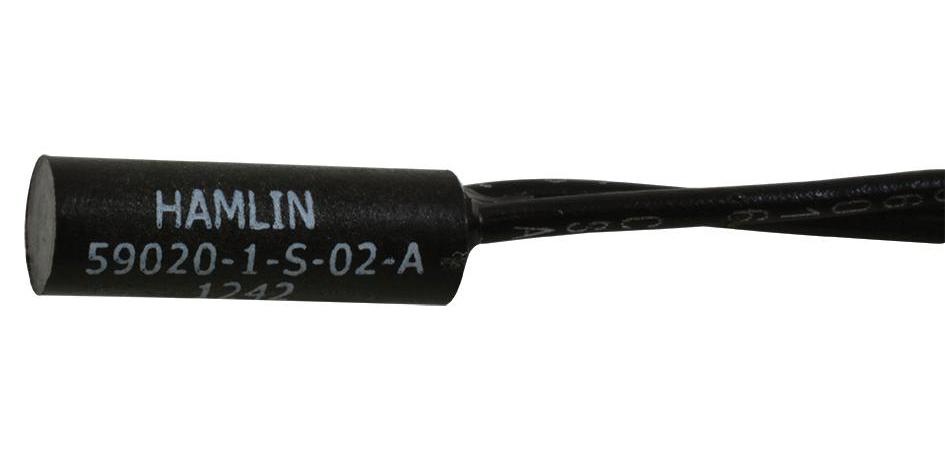

Littelfuse 590201S02A Reed Sensor
The 59020 Mini Firecracker reed sensor is a compact, magnetically operated proximity switch designed for reliable level sensing and security applications. It features a normally open contact type, operates through non-ferrous materials such as wood, plastic, or aluminium, and offers user-defined sensitivity and cable lengths. The sensor has a maximum switching voltage of 170V, maximum current of 0.5A, and an operating temperature range of -65°C to +105°C. Hermetically sealed contacts ensure long-term operation even in contaminated environments, making it ideal for industrial automation and control systems.
Littelfuse 590201S02A Reed Sensor Specifications:
- Switch Type: Normally Open
- Maximum Power: 10 W
- Maximum Voltage: 170 V
- Breakdown Voltage: 175 V minimum
- Maximum Current: 0.5 A
- Contact Resistance: 0.02 Ω
- Insulation Resistance: 10⁹ Ω or more
- Capacitance: 0.02 pF
- Operating Temperature: -65°C to +105°C
- Storage Temperature: -65°C to +105°C
- Maximum Operate Time: 10 ms
- Maximum Release Time: 10 ms
- Shock Resistance: 100 G (V2 sine)
- Vibration Resistance: 30 G (50-2000 Hz)
Buy the Buy Hamlin Mini Firecracker Part Number 590201S02A Online
Discover the convenience of purchasing the Hamlin reed sensor online. This reliable and compact proximity switch offers hermetically sealed contacts, customizable sensitivity, and versatile cable options, making it ideal for level sensing, security, and automation applications. With an operating temperature range from -65°C to +105°C, maximum switching voltage of 170V, and current of 0.5A, it ensures long-lasting performance even in harsh environments. Shop now to enhance your system's reliability with this easy-to-install sensor.
Buy Hamlin 590201S02A reed sensor now and experience unmatched reliability and precise level detection for your automation needs.
Frequently Asked Questions
Where can I buy Littelfuse 590201S02A?
You can click on the BUY or RFQ button to purchase 590201S02A from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 590201S02A?
You can download the 590201S02A datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 590201S02A?
Littelfuse
