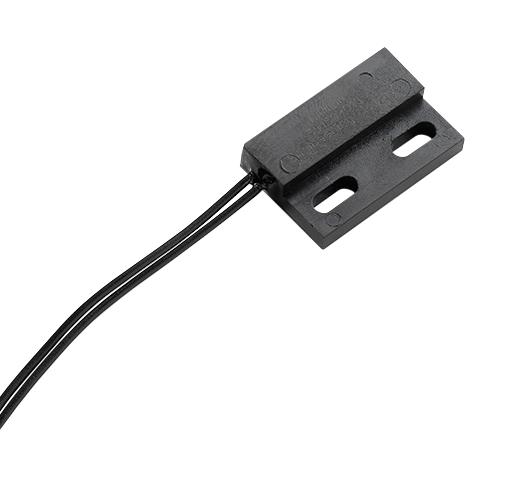

Littelfuse 591501S05A Proximity Reed Sensor
This reed sensor features a single-pole single-throw normally open (SPST-NO) contact configuration, capable of handling up to 1.2 amps and a maximum of 200 VDC switching voltage. Designed for reliable proximity sensing, it activates at approximately 0.531 inches (13.5 mm). Its terminal leads facilitate straightforward installation, making it suitable for various automation and security applications where precise and dependable switching is required. The sensor's hermetically sealed design ensures durability and long-term operation in challenging environments.
Littelfuse 591501S05A Proximity Reed Sensor Specifications:
- Contact Type: Single-pole single-throw normally open (SPST-NO)
- Maximum Current: 1.2 amps
- Maximum Voltage: 200 VDC
- Activation Distance: approximately 0.531 inches (13.5 mm)
- Mounting: Terminal leads for easy installation
- Sealing: Hermetically sealed for durability
- Application: Proximity sensing in automation and security systems
- Temperature Range: -65°C to +105°C
- Switching Power: Supports switching voltage up to 200 VDC
- Operation Mode: Magnetic activation
- Sensor Material: Non-ferrous materials compatibility
- Environmental Resistance: Sealed design, suitable for challenging environments
Buy the Hamlin Series Flange Mount Sensor: 59150
Secure your automation and security systems with the high-quality Hamlin Series 59150 proximity reed sensor. Designed to operate reliably with a maximum current of 1.2 amps and supporting up to 200 VDC, it activates at approximately 0.531 inches. Its hermetically sealed design provides long-term durability in challenging environments. Easy to install with terminal leads, this sensor is perfect for applications requiring precision proximity sensing, including security switches, linear actuators, and door sensors. Buy online today for dependable performance and streamlined integration.
Order your Hamlin Series 59150 flange mount sensor today and ensure reliable proximity detection for your industrial and security projects.
Frequently Asked Questions
Where can I buy Littelfuse 591501S05A?
You can click on the BUY or RFQ button to purchase 591501S05A from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part 591501S05A?
You can download the 591501S05A datasheet or visit the Littelfuse website for support.
Who is the manufacturer of 591501S05A?
Littelfuse
