Littelfuse MACD141520 Magnetic Proximity Switch
The MACD-14 is a reliable sub-miniature normally open magnetic proximity switch designed for position and liquid level sensing in industrial control and home appliance applications. Hermetically sealed contacts enable operation in harsh environments, capable of switching up to 200 Vdc at 10 Watts and a maximum current of 0.5 Amps. Its RoHS compliance ensures environmentally friendly operation, with features like low hysteresis, stable contact resistance, and no minimum switching voltage or current for versatile sensing solutions. The switch's compact design and durability make it ideal for reliable, long-term use.
Littelfuse MACD141520 Magnetic Proximity Switch Specifications:
- Dimensions: 14mm x 2.28mm glass envelope, 10 ohms insulation resistance
- Contact Power Rating: 10 W/VA max, 200 Vdc max, 140 Vac max
- Switching Current: Up to 0.5 Amps, 0.36 Aac max
- Contact Resistance: Max 0.100 ohms initially
- Temperature Range: -40°C to +125°C, storage -65°C to +125°C
- Operate Time: Max 0.6 ms, Release Time: Max 0.2 ms
- Shock: Max 100 G sine wave, Vibration: Max 30 G at 50-2000 Hz
- Pull-in Range: 10-30 Ampere Turns, Drop-out Range: Min 5 Ampere Turns
- Capacitance: Typical 0.3 pF, Certified UL and CSA Listed
- Resistance Capacitance: Contact resistance Max 0.100 ohms

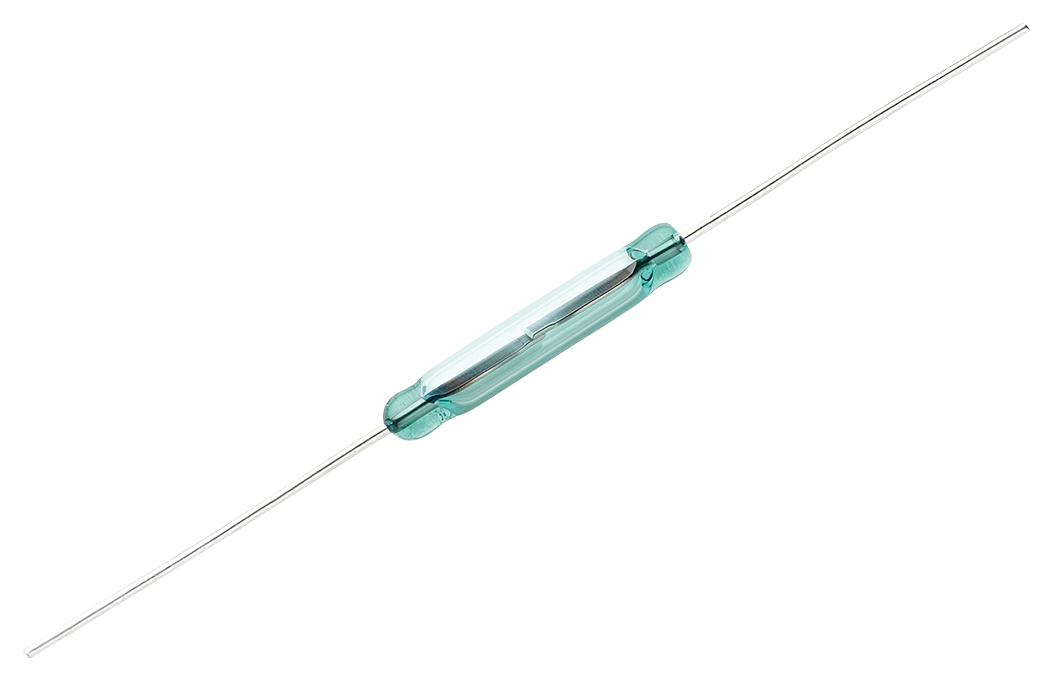

Buy the Buy Hamlin MACD-14 Part Number MACD141520 Online
Purchase the Hamlin MACD-14 magnetic proximity switch online today for reliable sensing in industrial, control, and appliance applications. Its hermetically sealed contacts ensure durability in harsh environments, capable of switching up to 200 Vdc at 10 Watts and a current of 0.5 Amps. Compact and RoHS compliant, this switch offers low hysteresis and stable contact resistance for precision sensing. Designed for long-term performance with quick response times, order now to enhance your project’s reliability and safety with this dependable switch.
Order your Hamlin MACD-14 magnetic proximity switch today and ensure dependable liquid level and position sensing in your industrial and home applications.
Frequently Asked Questions
Where can I buy Littelfuse MACD141520?
You can click on the BUY or RFQ button to purchase MACD141520 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part MACD141520?
You can download the MACD141520 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of MACD141520?
Littelfuse
