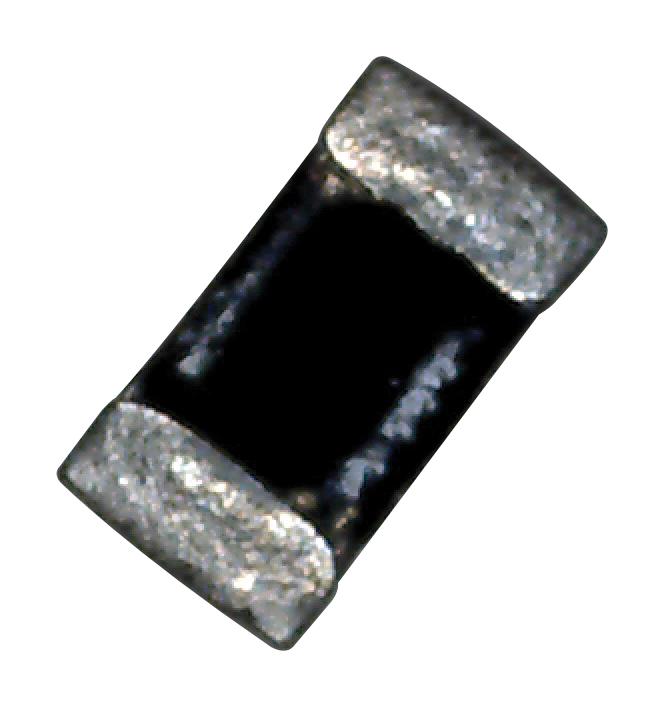

Littelfuse PESD0603240 ESD Protection Device
The PESD0603240 is a high-performance, bi-directional electrostatic discharge (ESD) protection device designed for high-frequency applications such as HDMI 1.3, LCD and plasma TVs, and USB interfaces. Featuring low capacitance of 0.25 pF, fast response time, low leakage current, and capable of withstanding numerous ESD strikes, it offers compact size and RoHS compliance. Its thick film technology ensures reliable performance in protecting sensitive electronic circuits from electrostatic damage, making it suitable for a variety of portable and consumer electronics.
Littelfuse PESD0603240 ESD Protection Device Specifications:
- Application: HDMI 1.3, USB 2.0, LCD & plasma TVs, portable devices
- Capacitance: 0.25 pF (typ)
- Operating Voltage: 24 V
- Trigger Voltage: 215 V
- Clamping Voltage: 45 V @1 MHz, 1V RMS
- Leakage Current: <0.01 μA
- Capacitor Type: Thick film technology
- Package Size: 0603 (imperial: 0.059" x 0.067")
- RoHS and ELV compliant, halogen free
- Response Time: Faster than 1 ns
- Number of strikes: Capable of withstanding numerous ESD events
- Lead Free, Halogen Free
- Applied standards: IEC61000-4-2, TLP testing
- Size: Compact form factor suitable for surface-mount PCB assembly
Buy the Littelfuse Series PESD: Bi-Directional ESD Protection Device: PESD0603240
Protect your electronic devices with the Littelfuse PESD0603240, a high-performance, bi-directional ESD protection component. It is compatible with HDMI, USB, and other high-frequency interfaces, offering low capacitance and rapid response times. Its compact size ensures easy integration into various designs, providing dependable electrostatic discharge safeguard. RoHS and halogen free, the device withstands multiple ESD strikes, maintaining circuit integrity. Perfect for consumer electronics, portable devices, and high-speed data lines, it delivers reliable protection while saving space on your PCB assembly. Buy online now for dependable circuit safety.
Order your Littelfuse Series PESD0603240 today and secure your sensitive electronics with reliable, compact ESD protection designed for high-speed data lines.
Frequently Asked Questions
Where can I buy Littelfuse PESD0603240?
You can click on the BUY or RFQ button to purchase PESD0603240 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part PESD0603240?
You can download the PESD0603240 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of PESD0603240?
Littelfuse
