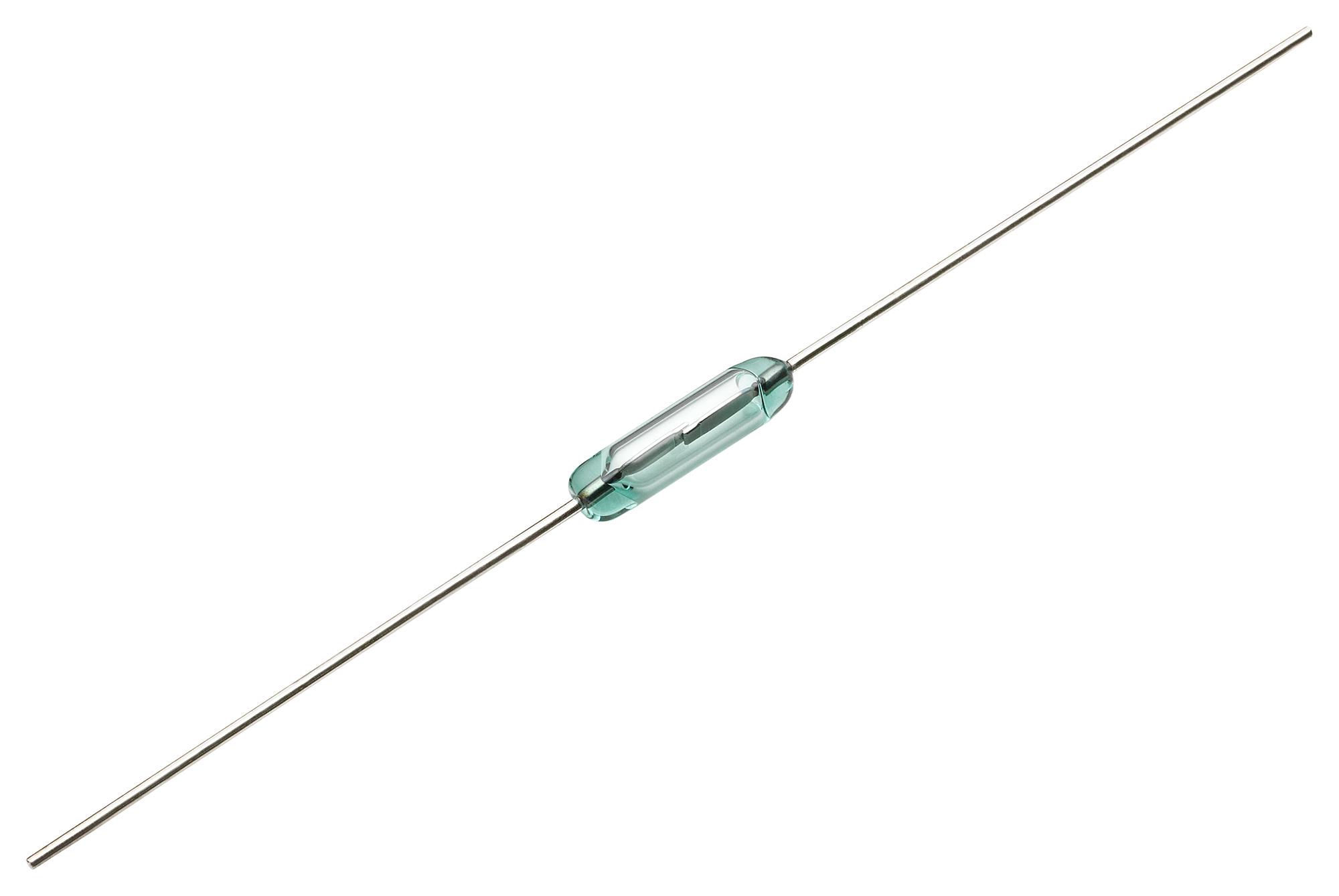

Littelfuse MITI7610 Miniature Reed Switch
The MITI-7 ultra-miniature reed switch is a compact, normally open device with a 7mm x 1.8mm glass envelope, capable of switching up to 170Vdc at 10W. Featuring a sensitivity range of 6-20 AT and high insulation resistance of 10^10 ohms, it is hermetically sealed for durability. Suitable for microcontroller logic, security, industrial controls, and telecommunication applications, this reed switch requires zero power for contact closure and offers excellent space efficiency and reliability in low power switching tasks.
Littelfuse MITI7610 Miniature Reed Switch Specifications:
- Dimensions: 7mm x 1.8mm glass envelope
- Contact Rating: 170Vdc, 10W, 0.25A
- Contact Resistance: Less than 150 milliohms
- Insulation Resistance: 10^10 ohms minimum
- Operate Time: 0.5ms maximum
- Release Time: 0.2ms maximum
- Shock Resistance: 11ms sine wave, 100G maximum
- Vibration Resistance: 30G at 50-2000Hz
- Pull-In Range: 6-20 AT, rated sensitivity up to 10 AT
- Material Body: Glass, Leads: Tin plated nickel iron
- Operating Temperature: -55°C to +85°C
- Storage Temperature: -55°C to +112°C
Buy the Littelfuse Series MITI-7 Ultra-Miniature Reed Switch: MITI7610
Discover the high-reliability Littelfuse MITI-7 series ultra-miniature reed switch, designed for compact spaces and low power switching tasks. Featuring a 7mm glass envelope, it reliably switches up to 170Vdc at 10W, with a sensitivity range of 6-20 AT, making it ideal for microcontroller logic, security, and industrial control systems. Hermetically sealed for durability, this switch offers excellent insulation resistance and low contact resistance, ensuring consistent performance in demanding environments. Perfect for applications requiring precise, power-efficient switching and space-saving design.
Get Littelfuse MITI-7-6-10 ultra-miniature reed switch today—built for precision and long-lasting durability in microcontroller and industrial applications.
Frequently Asked Questions
Where can I buy Littelfuse MITI7610?
You can click on the BUY or RFQ button to purchase MITI7610 from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part MITI7610?
You can download the MITI7610 datasheet or visit the Littelfuse website for support.
Who is the manufacturer of MITI7610?
Littelfuse
