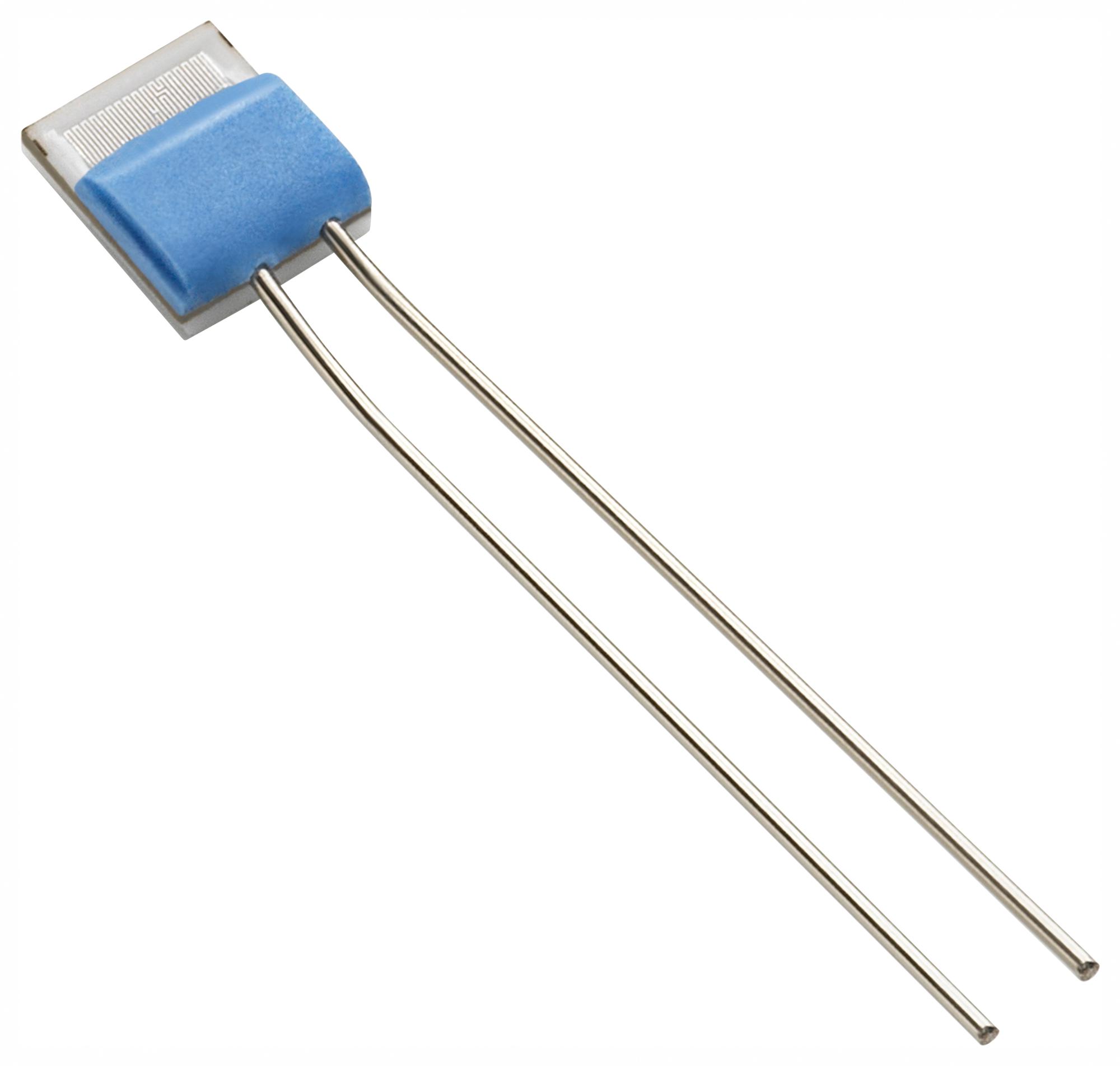

Littelfuse PPG101JB Platinum Resistance Temperature Detector
The PPG101JB is a high-accuracy thin film platinum resistance temperature detector (RTD) with stability from -70°C to +500°C. Crafted with a glass-coated platinum element on a ceramic substrate, it offers excellent environmental resilience and linear resistance-temperature relationships. Its resistance at 0°C is 100 ohms with a tolerance of 0.12%. This RTD belongs to the PPGxxxJx series, designed for precise temperature measurement in industrial applications. Suitable for high-temperature environments, it features Class B tolerance and is ideal for process control and HVAC systems.
Littelfuse PPG101JB Platinum Resistance Temperature Detector Specifications:
- Resistance at 0°C: 100 ohms
- Resistance Tolerance: 0.12% (Class B)
- Temperature Range: -70°C to +500°C
- Thermal Coefficient: 3,850 ppm/°C
- Resistance Deviation: 0.06Ω maximum at 0°C
- Lead Wire: 32 AWG resistance, ceramic substrate
- Response Time: 10 seconds
- Standards: DIN EN 60751 (1996, 2009)
- Environmental Stability: High accuracy and stability at extreme temperatures
- Construction Material: Glass-coated platinum element on ceramic substrate
Buy the Littelfuse Series RTD: PPG Series PPG101JB
Order the Littelfuse PPG101JB stainless steel RTD online today. Designed for high accuracy from -70°C to +500°C, it offers excellent stability, quick response, and reliable performance. Perfect for industrial process control, HVAC systems, and high-temperature environments. Its robust ceramic and platinum construction ensure durability and consistent readings under extreme conditions. Affordable and easy to install, this RTD guarantees precise temperature measurement, reducing downtime and maintenance costs. Purchase online now for timely delivery and expert support.
Get Littelfuse PPG101JB today—built for precision and long-lasting durability in industrial temperature sensing.
Frequently Asked Questions
Where can I buy Littelfuse PPG101JB?
You can click on the BUY or RFQ button to purchase PPG101JB from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part PPG101JB?
You can download the PPG101JB datasheet or visit the Littelfuse website for support.
Who is the manufacturer of PPG101JB?
Littelfuse
