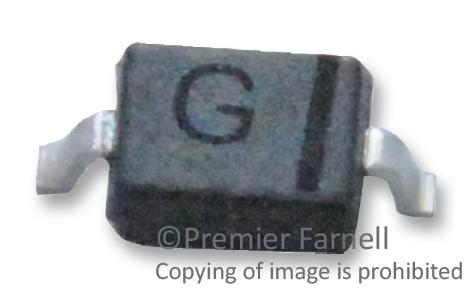

Littelfuse SD05C01FTG Transient Voltage Suppressor
The bidirectional TVS diode from the SDOSC Series provides robust electrostatic discharge (ESD) protection and transient suppression for low-speed and DC electronic applications. Designed to replace multilayer varistors, it absorbs repetitive ESD strikes at +30kV without performance degradation and safely dissipates up to 30A of surge current with low clamping voltages. Suitable for sensitive equipment like test devices, medical instruments, and computer peripherals, this compact SOD323 package offers high reliability, making it ideal for safeguarding electronic systems from transient events and static discharges.
Littelfuse SD05C01FTG Transient Voltage Suppressor Specifications:
- Peak Pulse Power: 450 W (t=8/20us)
- Maximum Operating Temperature: 40 to 125 °C
- Storage Temperature Range: -55 to 150 °C
- Maximum Junction Temperature: 150 °C
- Lead Soldering Temperature: 260 °C for 20-40s
- Reverse Voltage Drop at 1mA: Vp=5V
- Reverse Standoff Voltage: 5V
- Clamping Voltage at 1A, 10A, 24A: specified per test conditions
- Leakage Current: low leakage typical for TVS diodes
- Peak Current (t=8/20us): 30A
- Body Material: Molded epoxy, V-0 rated
- Lead Material: Copper alloy, matte tin plated
- Package: SOD323, tape & reel for surface mounting
- Dimensions: Compact form factor, approximately 1.0 x 0.8 mm footprint
- Soldering Parameters: Max peak temperature 260°C, reflow compliant
Buy the Littelfuse SD05C – Reliable Transient Voltage Suppressor for Industrial Applications
Secure your delicate electronic components with the Littelfuse SD05C TVS diode, offering 450W peak pulse power, high ESD protection, and a small SOD323 package. This robust transient voltage suppressor is engineered to withstand +30kV discharges and safely dissipate surge currents up to 30A, ensuring your devices stay protected from static discharges and transient voltage events. Perfect for test equipment, medical devices, and computer peripherals, it guarantees dependable performance, quick installation, and long-term reliability in demanding industrial environments.
Order your Littelfuse Series SD05C TVS diode today and enhance your electronic protection with high surge capacity and low clamping voltage for reliable circuit safeguarding.
Frequently Asked Questions
Where can I buy Littelfuse SD05C01FTG?
You can click on the BUY or RFQ button to purchase SD05C01FTG from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part SD05C01FTG?
You can download the SD05C01FTG datasheet or visit the Littelfuse website for support.
Who is the manufacturer of SD05C01FTG?
Littelfuse
