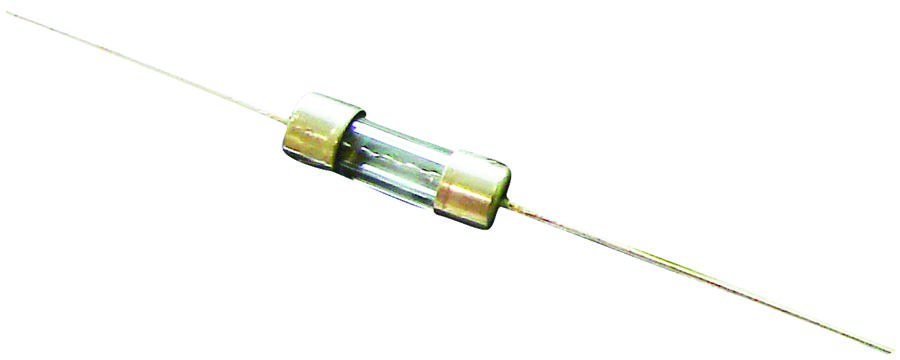

Littelfuse 0208003MXEP 2AG Fast-Acting Fuse
Littelfuse's 208 Series (2AG) Fast-Acting Fuses are designed for reliable circuit protection in various applications. Available in cartridge form or with axial leads, these fuses offer fast-acting performance while minimizing space requirements. The lead-free options cater to modern environmental standards. They are suitable for use in power supplies, electronic equipment, and other industrial applications where overcurrent protection is critical. The fuse's robust construction and reliable performance ensure consistent protection and long-term reliability.
Littelfuse 0208003MXEP 2AG Fast-Acting Fuse Specifications:
- Agency Approvals: E10480 (125mA - 10A), NBK200405-E10480 (1A - 5A), NBK060405-E10480 (6A - 10A)
- Body Material: Glass
- Cap Material: Nickel-plated brass
- Lead Material: Tin-plated Copper
- Terminal Strength: MILSTD-202G, Method 211A, Test Condition A
- Solderability: Reference IEC 6012/7 Second Edition Annex A
- Product Marking: Brand logo, current and voltage ratings, series and agency approval marks
- Operating Temperature: –55ºC to 125ºC
- Thermal Shock: MILSTD-202G, Method 107G, Test Condition B (5 Cycles -65°C to +125°C)
- Vibration: MILSTD-202G, Method 201A
- Humidity: MILSTD-202G, Method 103B, Test Condition A (95% RH, 40°C for 240 hours)
- Salt Spray: MILSTD-202G, Method 101D, Test Condition B
- Interrupting Rating: 350V
- Ampere Range: 125mA - 10A
- Packaging Code: M (1000), X (Loose Pack)
- Taping Width: 52mm (2.062”)
