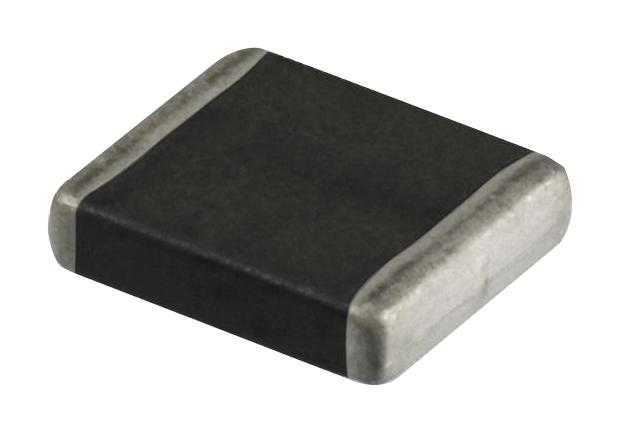

Littelfuse V48MLA1206NH Multilayer Varistor
The V48MLA1206N is a surface-mount multilayer varistor (MLV) designed for transient voltage suppression in electronic circuits. Manufactured using semiconducting ceramics, it provides fast response to high-voltage transients like ESD, EFT, and surge events. Suitable for circuit boards, it replaces larger TVS diodes in applications needing compact protection solutions. The device features a low capacitance, high energy absorption, and is compatible with modern reflow and wave soldering processes. It operates efficiently over a wide temperature range, ensuring reliable circuit protection and compliance with industry standards.
Littelfuse V48MLA1206NH Multilayer Varistor Specifications:
- Maximum Continuous Working Voltage: 48V DC
- Maximum AC Voltage: 40V AC
- Current (8/20 us): 0.9A
- Energy (10/1000 us): 0.9J
- Clamp Voltage (at 1A): 66.5V
- Capacitance: 185pF
- Operating Temperature Range: -40°C to +125°C
- Soldering: Compatible with reflow and wave soldering, maximum temperature 230°C
- Size: 1206 (mm): 3.2 x 1.6 mm
- Material: Semiconducting ceramic multilayer construction
- RoHS, Halogen-Free, Lead-Free options available
- Packaging: Reel, Bulk, Tape and Reel options available
- Response Time: Less than 1 ns
- Application: Circuit protection against ESD, EFT, surge voltage, industrial control, power supply, signal lines
- Rise Time: Approximate 1.25 x T
- Peak Pulse Current Handling: 3A (8/20 us waveform)
Buy the Littelfuse Series MLA: Surface Mount Multilayer Varistor 48V: V48MLA1206N
Purchase the Littelfuse Series MLA V48MLA1206N multilayer varistor online today to protect your electronic circuits efficiently. These surface-mount devices offer rapid response times, high energy handling, and a compact footprint, making them ideal for circuit board level transient voltage suppression. Suitable for ESD, EFT, and surge events, they ensure compliance with industry standards. Easy to solder via reflow or wave process, they provide a dependable and space-saving solution for power supply, control, and signal line protection across diverse applications. Buy now for reliable, high-performance circuit protection.
Order your Littelfuse Series MLA V48MLA1206N today and ensure reliable transient protection for your circuit boards with high energy absorption capacity.
Frequently Asked Questions
Where can I buy Littelfuse V48MLA1206NH?
You can click on the BUY or RFQ button to purchase V48MLA1206NH from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part V48MLA1206NH?
You can download the V48MLA1206NH datasheet or visit the Littelfuse website for support.
Who is the manufacturer of V48MLA1206NH?
Littelfuse
