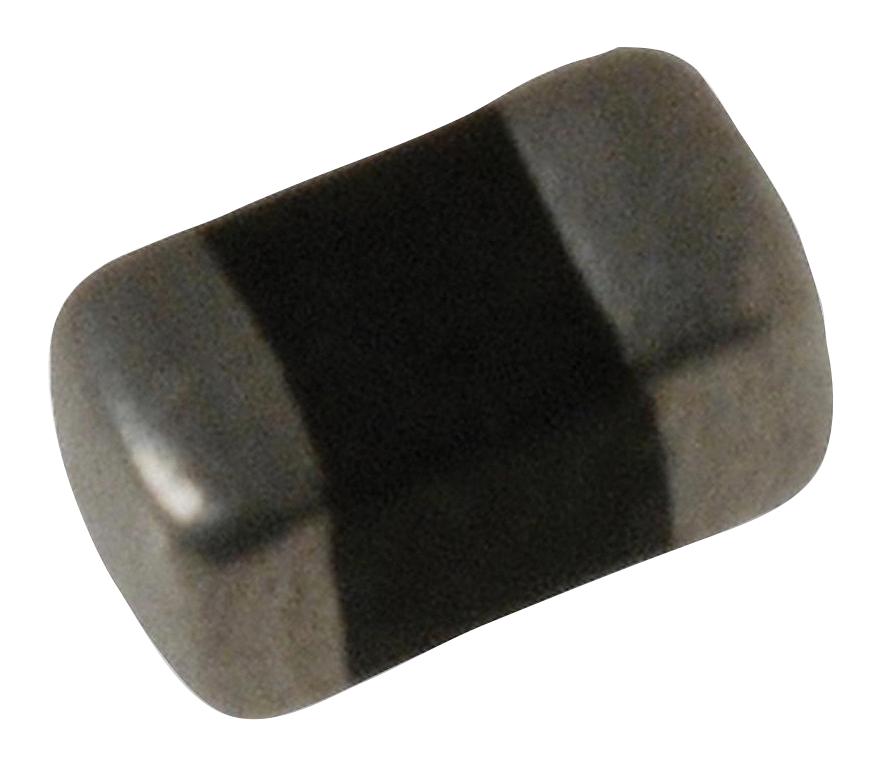

Littelfuse V9MLA0402NR Surface Mount Multilayer Varistor
The V9MLA0402NR is a surface mount multilayer varistor designed for transient voltage suppression in electronic circuits. Manufactured using Littelfuse's multilayer ceramic technology, it provides fast response to ESD, EFT, and surge events, making it ideal for circuit protection, EMC compliance, and suppression of inductive switching transients. The device features a compact 0402 size, high energy absorption, and high surge current ratings. It is RoHS compliant, halogen-free, suitable for automated reflow and wave soldering, and performs reliably over a wide temperature range, ensuring robust protection for sensitive components.
Littelfuse V9MLA0402NR Surface Mount Multilayer Varistor Specifications:
- Size: 0402 (1.0 mm x 0.5 mm)
- Peak Current (8/20us): 25A to 65A depending on model
- Energy Handling: 0.02 to 0.3 J
- Operating Voltage (DC): 3.5V to 48V
- Maximum Continuous Working Voltage: 25V to 40V
- Clamping Voltage: typically 13V to 54.5V at 1A
- Capacitance: approximately 70 to 380 pF
- Response Time: less than 1 nanosecond
- Operating Temperature Range: -40°C to +125°C
- RoHS & Halogen Free
- Soldering: compatible with reflow and wave soldering, maximum 230°C temperature
- Lead (Pb) Content: Lead-free options available with Nickel Barrier Termination
- Part Numbering: V9MLA0402NR or similar variants for different voltage ratings
- Reel Quantity: 10,000 pieces (bulk), 2,500 pieces (reel options)
Buy the Littelfuse V9MLA0402NR – Reliable Transient Voltage Suppressor for Industrial Applications
Ensure your electronic circuits are protected with the compact and reliable multilayer varistor from Littelfuse. The V9MLA0402NR offers fast response to transient events like ESD, EFT, and surge voltages, ensuring integrity of sensitive components. Its RoHS compliance, high energy absorption, and wide operating temperature range make it ideal for EMC compliance and circuit resilience. Easily installed via reflow or wave soldering, this device guarantees robust protection in a small footprint — order online today for fast delivery and dependable circuit protection.
Buy Littelfuse V9MLA0402NR now and experience unmatched reliability and high surge current protection for your circuits.
Frequently Asked Questions
Where can I buy Littelfuse V9MLA0402NR?
You can click on the BUY or RFQ button to purchase V9MLA0402NR from an authorized Littelfuse distributor.
How do I troubleshoot issues or seek technical support for part V9MLA0402NR?
You can download the V9MLA0402NR datasheet or visit the Littelfuse website for support.
Who is the manufacturer of V9MLA0402NR?
Littelfuse
