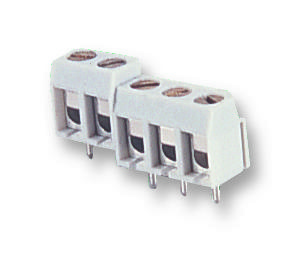

LUMBERG KRM06 Terminal Block
This is a screw terminal block with a pitch of 5.0 mm, designed for reliable electrical connections in industrial and control applications. Made with UL 94V-0 rated PA insulating bodies, nickel-plated CuZn clamp, and steel zinc-chromate plated screws, it withstands temperatures from -25°C to +110°C. It supports solid and stranded wires from AWG 22-12 or 22-14, with a rated current of 15 A, a voltage of 250 V AC, and a creepage and clearance distance of 1.3 mm. Its mechanical and electrical features ensure safety and durability for wiring needs.
LUMBERG KRM06 Terminal Block Specifications:
- Temperature range: -25°C to +110°C
- Insulating body material: PA, V2 UL 94
- Clamp material: CuZn, nickel-plated, tin-plated
- Screw material: Steel, zincked, chromate-plated
- Screw size: M3, torque 0.5 Nm
- Rated current: 15 A at 100°C (VDE) / 65°C (UL)
- Rated voltage: 250 V AC (VDE, UL)/300 V (CSA)
- Insulation resistance: >10 GΩ
- Creepage distance: 1.3 mm
- Clearance: 1.3 mm
- Suitable for solid and stranded wires: AWG 22-12 (CSA), AWG 22-14 (UL)
- Wire stripping length: 0.2–2.5 mm
- Operating temperature: -25°C to +110°C
- Certification: UL, VDE, CSA compliant
- Application: Electrical wiring, control systems, industrial automation
Buy the Buy Lumberg Screw Terminal Block Part Number KRM06 Online
Purchase the Lumberg KRM06 terminal block online today to ensure secure, durable, and high-quality electrical connections. Designed for wide temperature ranges and supporting various wire types, it offers optimal safety and performance for industrial automation, control panels, and wiring systems. With a pitch of 5.0 mm, rated at 15 A and 250 V AC, this terminal block combines robust construction with high electrical standards, making it the best choice for reliable electrical installations. Order now for fast delivery and technical support.
Buy Lumberg KRM06 screw terminal block now and experience unmatched reliability and performance in industrial wiring and control applications.
Frequently Asked Questions
Where can I buy LUMBERG KRM06?
You can click on the BUY or RFQ button to purchase KRM06 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part KRM06?
You can download the KRM06 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of KRM06?
LUMBERG
