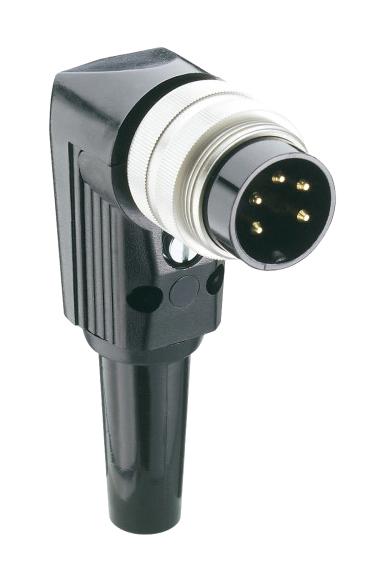

LUMBERG WSV120 Circular Connector
These circular connectors with threaded joints comply with IEC 61076-2-106 and are available in IP40, IP67, and IP68 ratings. Designed for reliable electrical connections, they feature solder terminals, right-angle versions, and various pole configurations, accommodating wire ranges from 0.25 mm² to 4-6 mm diameter cables. Made with high-quality materials including copper alloys and plastics, they support operating temperatures from -40 °C to +85 °C. The connectors are suitable for industrial automation, machinery, and control systems requiring durable, well-sealed, and easy-to-assemble connections.
LUMBERG WSV120 Circular Connector Specifications:
- Material: PA GF, V-0; CuZn, silver-plated and flash gold; CuZn, pre-nickel and gold; CuZn, pre-nickel and tin-plated steel; zinc-plated steel; PC, HB; TPE; special steel
- Temperature Range: -40 °C to +85 °C
- Tightening Torque: 13 Nm
- Protection Class: IP40 (locked condition)
- Rated Current: 3A to 5A depending on pole count
- Rated Voltage: 100V to 500V depending on version
- Rated Impulse Voltage: up to 1500V
- Connectable Conductor Cross-Section: 0.75 mm² (AWG 20), 0.25 mm² (AWG 24)
- Cable Diameter: 4-6 mm
- Pole Numbers: 3 to 12 poles
- Polish Configurations: WSV 30, 40, 50, 50/6, 60, 70, 71, 80, 81, 120
- Packaging: Pre-assembled in a cardboard box
Buy the Lumberg Series E Circular Connectors: WSV120
Secure your industrial connections efficiently with the Lumberg Series E Circular Connector WSV120. Featuring threaded joint, high IP ratings, and solder terminals, it is ideal for demanding automation and control systems. Made of high-quality materials, supporting temperatures from -40 °C to +85 °C, this connector ensures durability and reliable performance. With a wide range of pole configurations and easy pre-assembled packaging, it simplifies installation while providing excellent electrical contact and environmental protection. Purchase online now for your next upgrade or project requirement.
Order your Lumberg Series E WSV120 connector today and ensure reliable, sealed connections for your industrial and automation projects.
Frequently Asked Questions
Where can I buy LUMBERG WSV120?
You can click on the BUY or RFQ button to purchase WSV120 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part WSV120?
You can download the WSV120 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of WSV120?
LUMBERG
