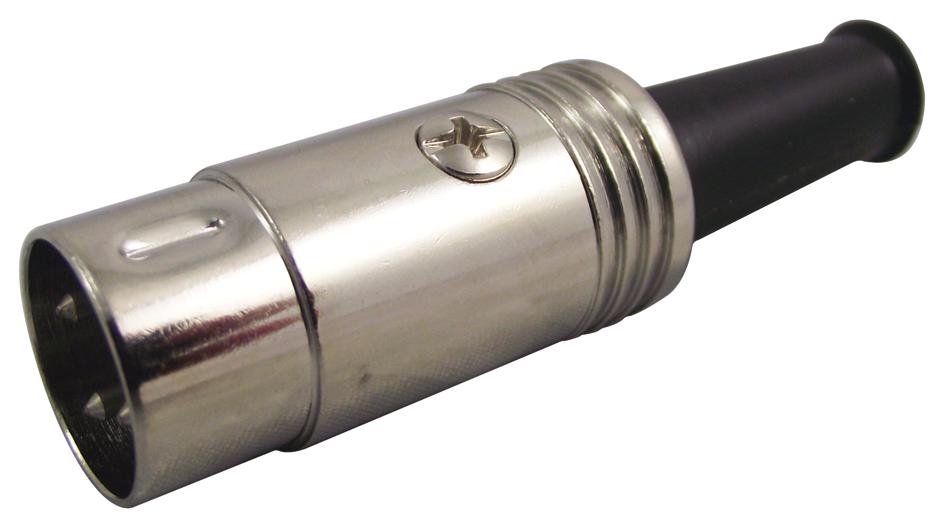

LUMBERG 013103 DIN Circular Connector
This is a DIN circular connector designed for reliable electrical connections in industrial applications. Featuring a straight, shielded metal housing with bend protection and solder terminals, it supports an operating temperature range from -20°C to +85°C. Made with durable materials including PA insulators, silver-plated copper pins, nickel-plated steel strain relief and screws, and PVC bend protection, it ensures longevity and resistance to mechanical stress. Compatible with DIN sockets 010 and 012, it offers a rated current of 4A, rated voltage of 100V AC, and low contact resistance for stable electrical performance.
LUMBERG 013103 DIN Circular Connector Specifications:
- Temperature Range: -20°C to +85°C
- Material: PA insulator, silver-plated copper pins, nickel-plated steel strain relief and screws, CuzZn housing, PVC bend protection
- Contact Resistance: <30 mΩ (pins), <50 mΩ (housing)
- Rated Current: 4A
- Rated Voltage: 100V AC
- Test Voltage: 250 V AC RMS/60 s
- Insulation Resistance: >100 MΩ
- Compatibility: Mates with DIN sockets 010 and 012
- Connection: Solder terminals, support for wire range AWG 18 (0.75 mm²)
- Mechanical Features: Metal housing, bend protection, robust design for industrial use
Buy the Buy Lumberg DIN Circular Connectors Part Number 013103 Online
Purchase the DIN Circular Connector 013103 online today for your industrial wiring needs. Featuring a shielded metal housing, rugged construction, and solder terminals, it provides reliable connections with a temperature range from -20°C to +85°C. Made with high-quality materials including silver-plated copper pins, nickel-plated steel strain relief, and PVC bend protection, this connector offers low contact resistance, rated at 4A and 100V AC. Ensuring durability and safety, it is ideal for seamless integration in various industrial electrical applications.
Buy Lumberg DIN Circular Connectors 013103 now and experience unmatched reliability and stable electrical performance in industrial environments.
Frequently Asked Questions
Where can I buy LUMBERG 013103?
You can click on the BUY or RFQ button to purchase 013103 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part 013103?
You can download the 013103 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of 013103?
LUMBERG
