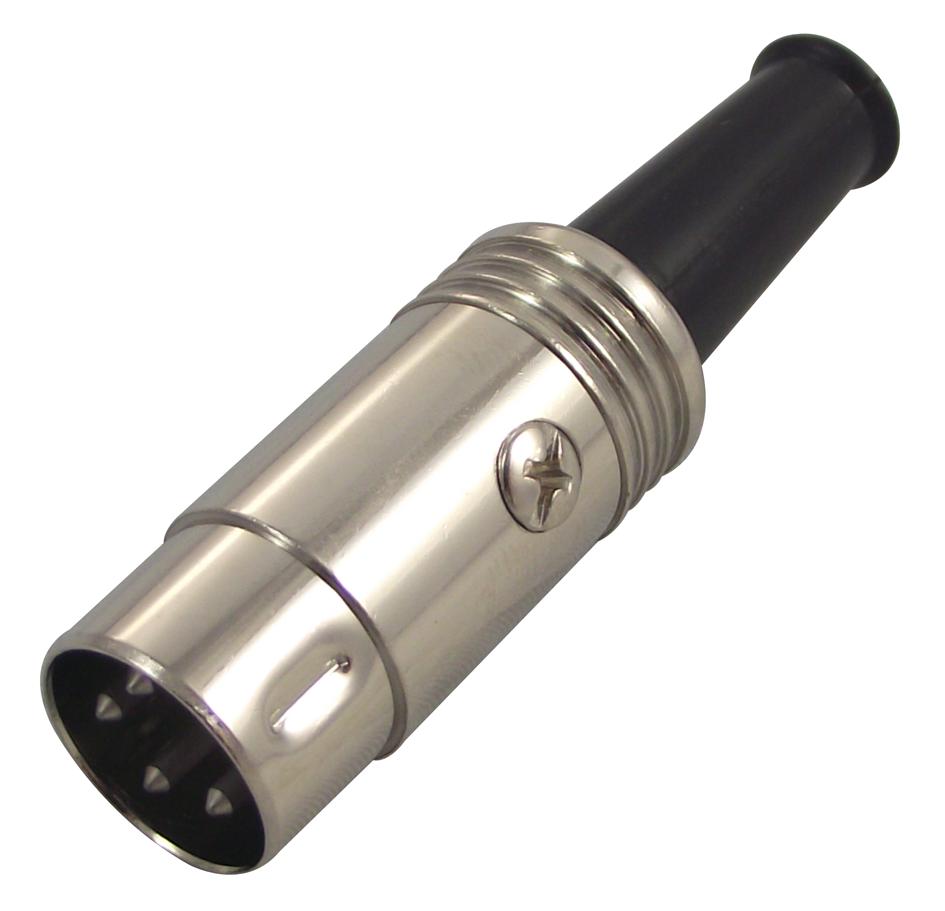

LUMBERG 013104 DIN Circular Connector
This DIN circular connector is a straight, shielded male plug designed for reliable electrical connections in industrial applications. It features a metal housing, bend protection, and solder terminals for secure wiring. Constructed from high-quality materials including PA insulator, CuzZn contact pins, and nickel-plated steel strain relief and screws, it offers a temperature range of -20 °C to +85 °C. Suitable for wiring with AWG 18 cables, it supports a rated current of 4A and withstands test voltages up to 250 V AC RMS for 60 seconds, ensuring durability and safety in harsh environments.
LUMBERG 013104 DIN Circular Connector Specifications:
- Temperature Range: -20 °C to +85 °C
- Material: PA insulator UL 94 VO, CuzZn contact pins, nickel-plated steel strain relief and screws, CuzZn housing
- Contact Resistance: < 30 mΩ for pin, < 50 mΩ for housing
- Rated Current: 4A
- Test Voltage: 250 V AC RMS for 60s
- Insulation Resistance: > 100 MΩ
- Wire Connection: Up to AWG 18 (0.75 mm²)
- Housing: Metal, shielded, with bend protection
- Temperature Range: -20 °C to +85 °C
- Dimensions: Not specified but compatible with DIN standards
- Certifications: UL 94V-0, DIN 41524, DIN 45322, DIN 45329, DIN 45326
Buy the Buy Lumberg DIN Circular Connectors Part Number 013104 Online
Secure your projects with the high-quality Lumberg DIN Circular Connector model 013104. Designed for industrial environments, this straight, shielded male plug features a durable metal housing, bend protection, and solder terminals for a secure connection. Constructed from UL 94 VO-compliant PA insulator, CuzZn contact pins, and nickel-plated steel components, it supports up to 4A current and withstands voltages up to 250 V AC RMS. Ideal for wiring AWG 18 cables, ensuring safety, durability, and consistent performance for demanding applications.
Order your Lumberg Series013104 straight shielded DIN connector today and ensure robust, reliable electrical connections for industrial applications.
Frequently Asked Questions
Where can I buy LUMBERG 013104?
You can click on the BUY or RFQ button to purchase 013104 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part 013104?
You can download the 013104 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of 013104?
LUMBERG
