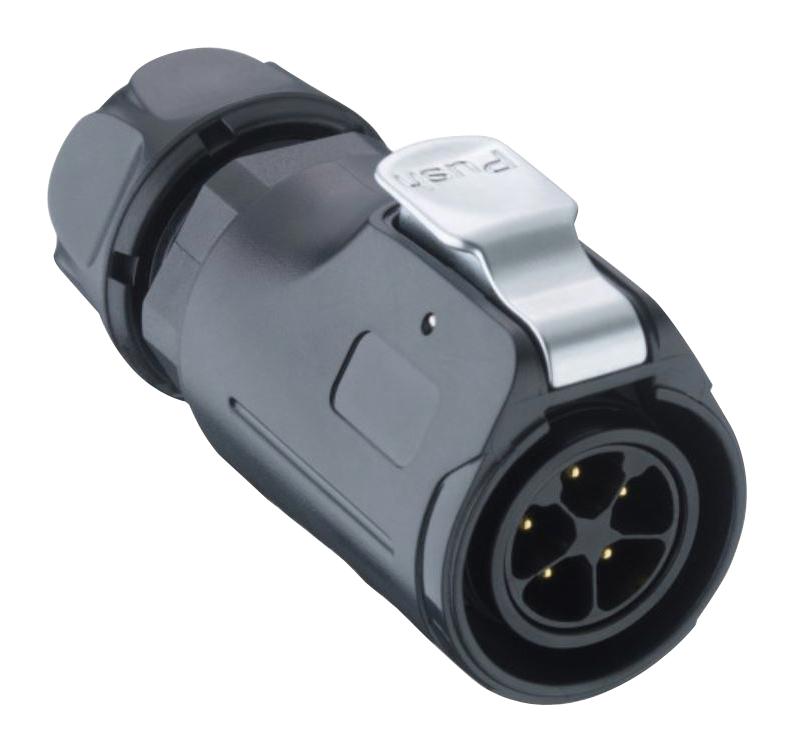

LUMBERG 025205 Quicklock Plug Connector
The LUMBERG 0252 05 Quicklock connector is a robust, circular connector designed for demanding environments. Its IP67 rating ensures protection against dust and water ingress, making it ideal for industrial applications. The connector features a straight design, a durable plastic housing made from PBT (V-0 rated), and gold-plated copper and zinc terminals for reliable electrical connections. It is designed to accommodate conductors ranging from 2.5 mm² to 1.0 mm² and is suitable for various pole configurations, offering flexibility in system design. The connector is packaged in individual plastic bags within a cardboard box for protection during shipping and storage.
LUMBERG 025205 Quicklock Plug Connector Specifications:
- Connector Type: Circular Connector
- Protection Class: IP67
- Size: 20
- Design: Straight
- Housing Material: PBT, V-0
- Contact Material: CuZn, gold-plated
- Locking Material: Zn-alloy, chrome-plated
- Cap Nut Material: PBT, V-0
- Temperature Range: -40 °C / +80 °C
- Connectable Conductors (2-4 poles): ≤ 2.5 mm²
- Connectable Conductors (5-7 poles): ≤ 1.5 mm²
- Connectable Conductors (9-12 poles): ≤ 1.0 mm²
- Cable Diameter: 4.0–11.5 mm
- Contact Resistance: ≤ 5 mΩ
- Rated Current (2–4 poles): 20 A
- Rated Current (5–7 poles): 12 A
- Rated Current (9–12 poles): 5 A
- Rated Voltage: 500 V
- Rated Impulse Voltage (2–7 poles): 2500 V AC
- Rated Impulse Voltage (9–12 poles): 1500 V AC
- Creepage Distance: ≥ 2 mm
- Clearance: ≥ 2 mm
- Insulation Resistance: > 500 MΩ
- Packaging: Individual plastic bags in a cardboard box
- Minimum Order Quantity: 40 Pieces
