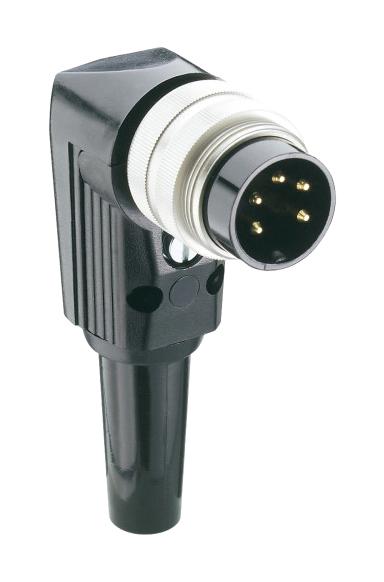

LUMBERG WSV50 Industrial Circular Connector
The WSV50 is a high-quality circular connector with a threaded joint, designed for seamless electrical connections in industrial environments. Compliant with IEC 61076-2-106 standards, it features solder terminals for secure wiring and is rated for temperatures between -40°C and +85°C. Made from durable materials including polycarbonate housing and copper-zinc contacts, it offers an IP40 protection class. Suitable for various cable sizes and contact configurations, this connector ensures reliable performance in automation, control systems, and industrial equipment.
LUMBERG WSV50 Industrial Circular Connector Specifications:
- Material: PA GF V-0 according to UL94 for housing, CuZn silver-plated contacts, zinc-plated steel screw, TPE strain relief
- Dimensions: Diameter varies with model, typical connector length approximately 50 mm, suitable for cable diameter 4-6 mm, terminal area length about 10 mm
- Temperature Range: -40°C to +85°C
- Protection Class: IP40 in locked condition, IEC DIN EN 60529
- Tightening Torque: 13 Nm for connector and nut
- Electrical Ratings: 5A at 300 V (pollution degree 1), 3A at 250 V (pollution degree 2), insulation resistance > 100 MΩ
- Rated impulse voltage: 1500 V (versions 30, 40, 50/6, 60, 70, 120), 500 V (versions 50, 71, 80, 81)
- Connectable Conductors: 0.75 mm² (AWG 20) for 3-8 poles, 0.25 mm² (AWG 24) for 12 poles
Buy the Lumberg Series Circular Connectors: WSV50
Purchase the Lumberg WSV50 industrial circular connector online today. Designed for durability, it features a threaded joint, solder terminals, and an IP40 protection rating. Ideal for automation, control systems, and manufacturing environments, this connector operates over a temperature range of -40°C to +85°C. Made from high-quality materials including polycarbonate housing and copper-zinc contacts, it ensures reliable, long-term electrical connections in demanding industrial applications. Order now for quick delivery and seamless integration into your system.
Get Lumberg WSV50 today—built for reliable industrial connections and long-lasting durability.
Frequently Asked Questions
Where can I buy LUMBERG WSV50?
You can click on the BUY or RFQ button to purchase WSV50 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part WSV50?
You can download the WSV50 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of WSV50?
LUMBERG
