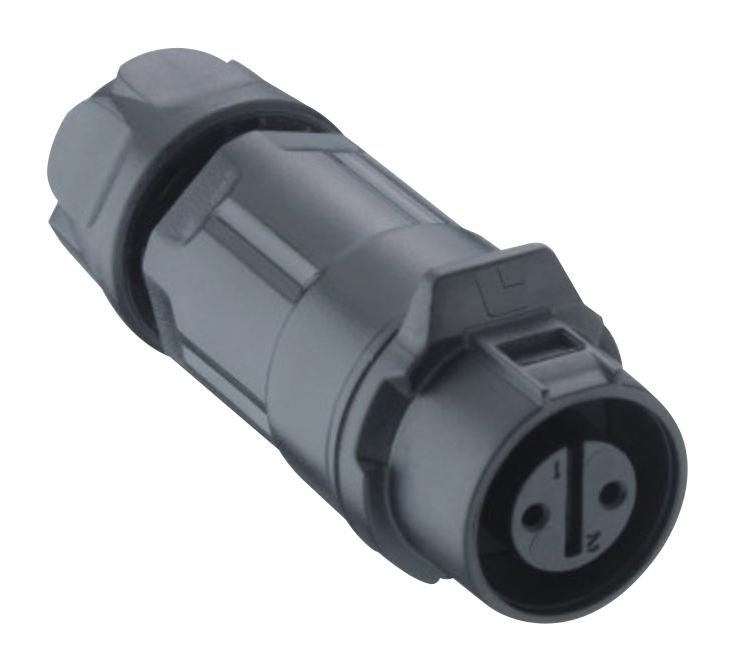

LUMBERG 026006 industrial circular connector
The Lumberg E Quicklock circular connector is an IP67 rated socket designed for reliable industrial connections. It features a plastic housing, solder terminals, and withstands up to 1700 mating cycles. Capable of connecting conductors from 15mm² to 0.75mm², it is suitable for cable diameters of 30-60mm. The connector operates in temperatures from -40°C to +80°C, with rated currents of 3-5A and a rated voltage of 25V. Durable and environmentally sealed, it ensures secure connections in challenging environments.
LUMBERG 026006 industrial circular connector Specifications:
- Protection Class: IP67
- Material: Insulating body/handle PBT, CuSn contact bush, PBT cap nut
- Temperature Range: -40°C to +80°C
- Mating Cycles: 1700
- Insertion Force: 80N
- Withdrawal Force: 50N
- Contact Resistance: 10mΩ
- Rated Current: 3A to 5A depending on poles
- Rated Voltage: 25V
- Impulse Voltage: 1500V AC
- Creepage Distance: 215mm
- Clearance: 205mm
- Cable Diameter Range: 30-60mm
- Conductor Section: 15mm² to 0.75mm²
- Receptacle Poles: 2 to 8
- Approvals: cCé Wks
Buy the Lumberg IP67 Circular Connector – Reliable Industrial Connectors for Commercial Applications
Secure your industrial connections with the Lumberg IP67 circular connector, featuring a plastic housing and solder terminals. Designed for reliability, it withstands harsh environmental conditions with a protection rating of IP67. It supports various conductor sizes from 15mm² to 0.75mm² and enables up to 1700 mating cycles. Operating temperature ranges from -40°C to +80°C, rated at 3-5A and 25V. Ideal for industrial applications requiring durable, sealed, and high-performance connectors, easily available online for quick deployment.
Buy Lumberg E 026006 now and experience unmatched durability and dependable connection performance for your industrial wiring needs.
Frequently Asked Questions
Where can I buy LUMBERG 026006?
You can click on the BUY or RFQ button to purchase 026006 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part 026006?
You can download the 026006 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of 026006?
LUMBERG
