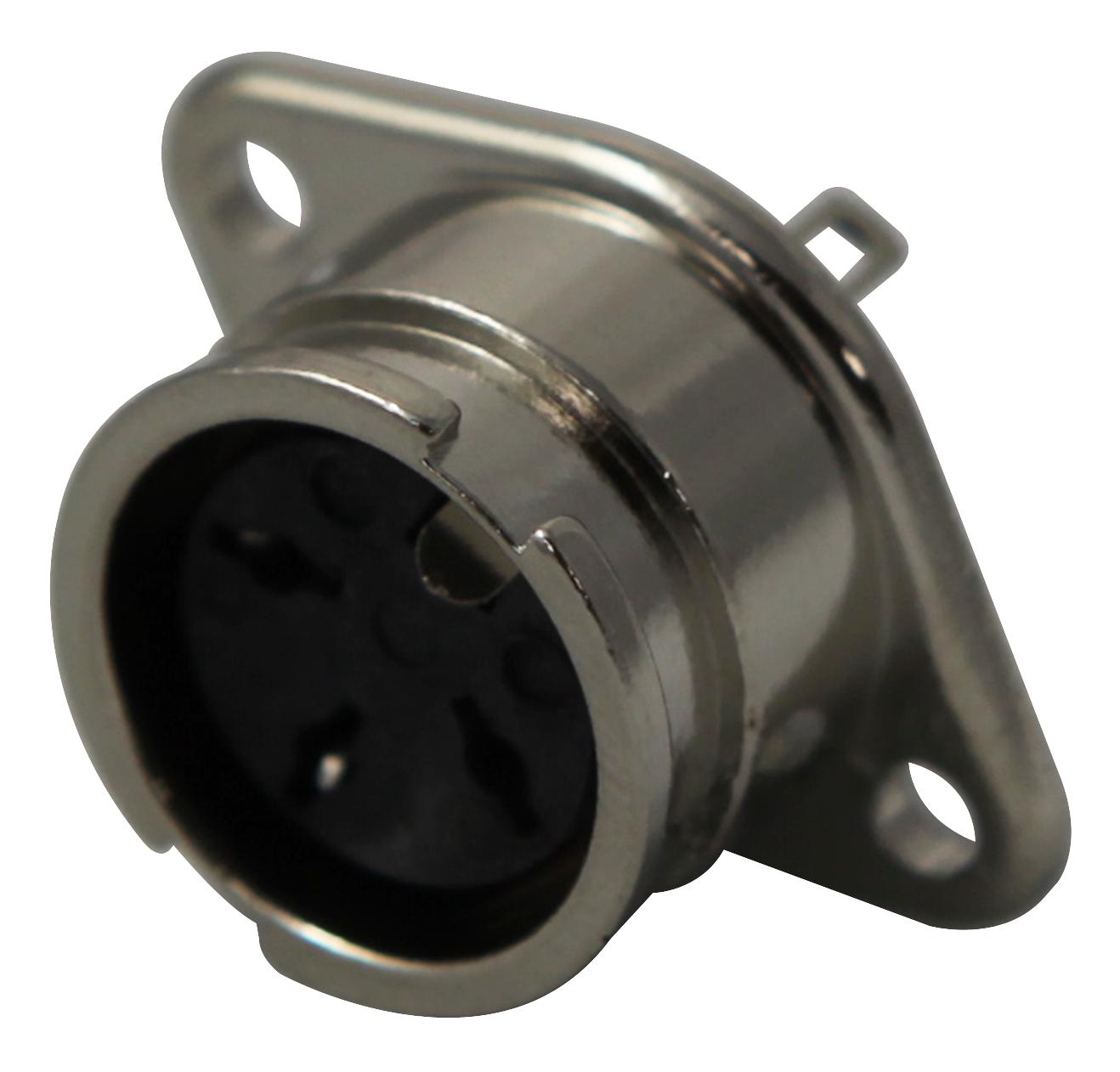

LUMBERG 0107071 DIN Circular Connector
The LUMBERG 0107 07-1 is a robust DIN circular connector designed for reliable connections in industrial environments. This connector features a shielded design with a bayonet lock mechanism for secure mating. The metal housing, flange, and solder terminals provide a durable and versatile solution for various applications. Constructed with an ABS insulating body, silvered CuZn contact spring, and a nickeled Zn alloy housing, it ensures excellent electrical performance and longevity. It is compatible with DIN plugs 0132, 0134, and is packaged individually in plastic bags within a cardboard box.
LUMBERG 0107071 DIN Circular Connector Specifications:
- Temperature Range: -20 °C/+85 °C
- Materials_Insulating Body: ABS, V0 according to UL 94
- Materials_Contact Spring: CuZn, silvered
- Materials_Ground Contact Spring: Cu, nickeled
- Materials_Housing: Zn alloy, nickeled
- Mechanical_Mating: DIN plugs 0132, 0134
- Electrical_Contact Resistance: ≤ 30 mΩ
- Electrical_Housing Resistance: ≤ 50 mΩ
- Electrical_Rated Current: ≤ 4 A
- Electrical_Rated Voltage: 60 V AC
- Electrical_Test Voltage: 250 V AC RMS/60 s
- Electrical_Insulation Resistance: ≥ 100 MΩ
- Packaging: individually in plastic bags, in a cardboard box
