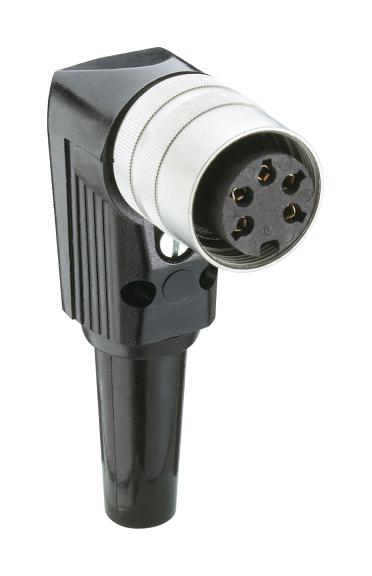

LUMBERG WKV50 Industrial Circular Connector
This industrial circular connector features a robust design with an insulating PA GF body, silver- and gold-plated contact bushings, and a steel sleeve for durability. It supports a temperature range from -40°C to +85°C and complies with IEC 61076-2-106 standards, offering IP40/IP67/IP68 ingress protection. Ideal for industrial automation and control systems, it provides reliable connections with a rated current of 3-5A and rated voltages up to 300V. Its screw and solder terminal options ensure secure and stable electrical connections in harsh environments.
LUMBERG WKV50 Industrial Circular Connector Specifications:
- Temperature Range: -40°C to +85°C
- Insulating Body: PA GF, V-0 UL94
- Contact Material: CuZn, silver-plated and flash gold-plated (3-8 poles), CuZn, pre-nickel and gold-plated (12 poles)
- Ground Contact Spring: CuZn, pre-nickel and tin-plated
- Housing Material: PC, HB UL94
- Knurled Nut: CuZn, nickel-plated
- Strain Relief: Steel, nickel-plated
- Cable Diameter: 4-6 mm
- Insertion Force: 5.0 N
- Withdrawal Force: 1.9 N (3-8 poles), 2.0 N (12 poles)
- Tightening Torque: +3 Nm
- Protection Class: IP40/IP67/IP68 (locked condition)
- Rated Current: 3-5 A depending on configuration
- Rated Voltage: Up to 300 V for versions 30, 40, 50/6, 60, 70
- Rated Impulse Voltage: 1500 V
- Contact Resistance: 5 mΩ
- Certification: IEC 60529, UL, CSA
Buy the Lumberg WKV50 – Reliable Industrial Circular Connector for Industrial Applications
Enhance your industrial setups with the durable and versatile Lumberg circular connector. It features a robust PA GF body, gold-plated contacts, and multiple IP protection levels, making it ideal for harsh environments. Supports a temperature range from -40°C to +85°C with rated currents up to 5A and voltages up to 300V. Perfect for automation, control panels, and machinery, it offers reliable solder or screw connections, ensuring safety and long-term stability in demanding industrial applications.
Buy Lumberg WKV50 now and experience unmatched reliability and performance in your industrial automation projects.
