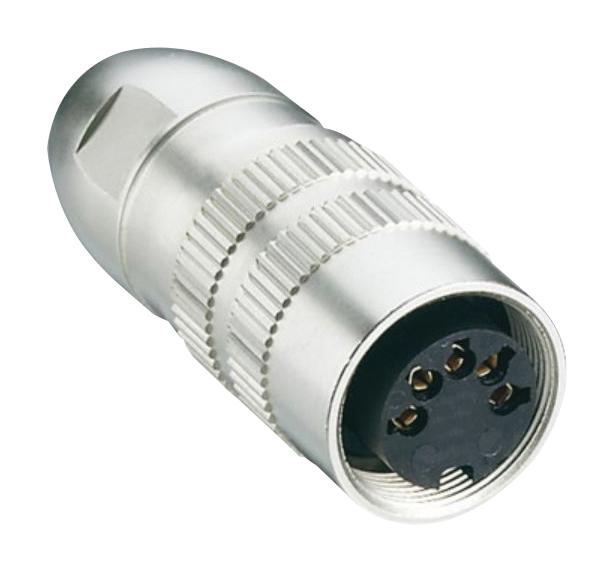

LUMBERG 0321081 Circular Connector
The Lumberg E circular connector features a threaded joint M16 according to IEC 61076-2-106, with IP68 protection, suitable for demanding environmental conditions. Made from durable materials including PA GF insulating bodies and CuZn contact bushings with gold and silver plating, it supports solder terminals and is designed for versatile applications in automation and industrial connections. The connector operates within a temperature range of -40°C to +85°C, with a rated current of up to 5A, and is available in various pole configurations from 2 to 14 poles, ensuring reliable electrical connections in rugged environments.
LUMBERG 0321081 Circular Connector Specifications:
- Threaded joint: M16 x 0.75 according to IEC 61076-2-106
- Protection Class: IP68, IP40/IP67 variants available
- Housing Material: CuZn, nickel-plated
- Insulating Body: PA GF, V-0 UL 94
- Contact Bush Material: CuZn, silver-plated and flash gold-plated (3-8 poles); pre-nickel and gold-plated (12-14 poles)
- Seal Material: NBR
- Temperature Range: -40°C to +85°C
- Rated Current: 3A (12-14 poles), 5A (3-8 poles)
- Rated Voltage: 250V (versions 03, 04, 05-1, 06, 07), 60V (versions 05, 07-1, 08, 08-1, 12, 14)
- Rated Impulse Voltage: 2000V (versions 03, 04, 05-1, 06, 07), 1000V (versions 05, 07-1, 08, 08-1, 12, 14)
- Contact Resistance: ≤ 5mΩ
- Cable Diameter: 4-8mm
- Connectable Conductor Cross-Section: 0.75mm² (3-8 poles), 0.25mm² (12-14 poles)
- Insertion and Withdrawal Force: 5N and 12N respectively
- Tightening Torque: 13 Nm
- Environmental Conditions: IP68, IP67, IP40 suitable for rugged industrial environments
Buy the Buy Lumberg Circular Connectors Part Number 0321081 Online
Secure reliable, durable connections with this industrial-grade circular connector. Designed for demanding environments, it features a threaded M16 joint, IP68/IP67 protection, and versatile pole configurations. Made from high-quality materials including CuZn and PA GF, it supports solder terminals and operates from -40°C to +85°C. Ideal for automation, machinery, and industrial equipment, this connector ensures long-lasting performance. Purchase online today and enhance your industrial connectivity solutions with ease and confidence.
Buy Lumberg 0321081 now and experience unmatched reliability and performance in rugged industrial environments.
