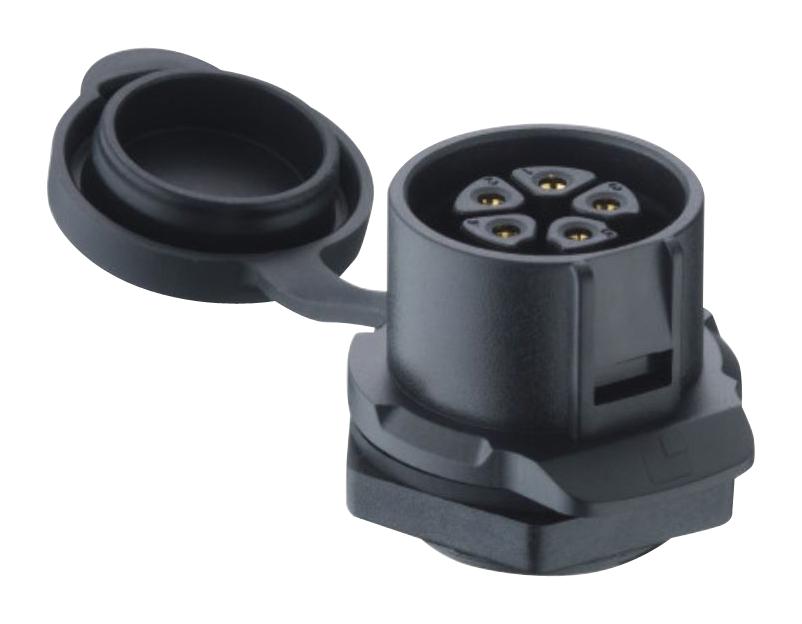

LUMBERG 027204 Circular Connector
The Lumberg E Quicklock circular connector is IP67 rated, featuring a straight chassis socket with a plastic housing, solder terminals, and a protecting cap rated IP65. It operates in temperatures from -40°C to +80°C and withstands up to 1700 mating cycles. Suitable for connecting conductors up to 12 poles, it offers rated currents of up to 20A and rated voltages of 500V. Its rugged design ensures reliable performance in harsh environmental conditions with excellent contact resistance and insulation resistance.
LUMBERG 027204 Circular Connector Specifications:
- Environmental Conditions: Temperature Range: -40°C to +80°C
- Housing Material: PBT, V-0 UL94
- Contact Material: CuSn, gold-plated
- Protection Class: IP67 (connector), IP65 (protecting cap)
- Mating Cycles: 1700
- Insertion Force: 20N
- Withdrawal Force: Not specified
- Connectable Conductors: 2-4 poles (2.5mm²), 5-7 poles (15mm²), 9-12 poles (10mm²)
- Electrical Data: Contact Resistance: 5mΩ, Rated Current: 20A (2-4 poles), 12A (5-7 poles), 5A (9-12 poles)
- Rated Voltage: 500V, Rated Impulse Voltage: 2500V AC (2-7 poles), 1800V AC (9-12 poles)
- Creepage Distance and Clearance: 2mm each
- Insulation Resistance: > 500 MΩ
Buy the Lumberg Series Quicklock Circular Connectors: 0272
Enhance your industrial connection solutions with the Lumberg E 0272 circular connector. Featuring an IP67 rating, plastic housing, and solder terminals, this connector ensures dependable performance in extreme environments. Its rugged design withstands -40°C to +80°C temperatures, provides high mating cycle durability, and supports conductor sizes up to 12 poles. Perfect for demanding automation or control systems, it offers current ratings up to 20A and voltage ratings of 500V. Order online now for fast delivery and reliable connectivity.
Buy Lumberg E 0272 circular connector now and experience unmatched durability and reliable performance in harsh industrial environments.
