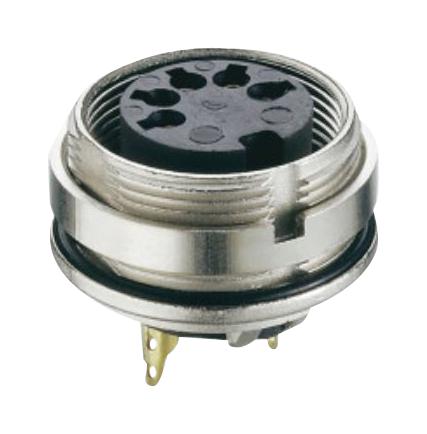

LUMBERG 030506 Threaded Circular Connector
The LUMBERG 0305 06 is a robust circular connector designed for demanding industrial applications. It features a threaded M16 joint, providing a secure and sealed connection with IP67/IP68 protection against dust and water ingress. The connector is designed for back-side mounting and utilizes solder terminals for reliable electrical connections. Constructed with durable materials like PA GF, CuZn, and Zn diecast, it ensures long-lasting performance in harsh environments. It is suitable for a wide range of applications including industrial automation, power transmission, and data communication where reliable and protected connectivity is essential.
LUMBERG 030506 Threaded Circular Connector Specifications:
- Temperature Range: −40 °C/+85 °C
- Insulating Body: PA GF, V-0 according to UL94
- Contact Bush: CuZn, silver-plated and flash gold-plated (3-8 poles) / CuZn, pre-nickel and gold-plated (12-14 poles)
- Housing: Zn diecast, pre-copper and nickel-plated
- Ring Screw: CuZn, nickel-plated
- Seal: CR (flat), NBR (O-ring)
- Insertion Force/Contact: ≤ 5.0 N
- Withdrawal Force/Contact: ≥ 1.2 N (3-8 poles) / ≥ 0.9 N (12-14 poles)
- Tightening Torque Connector: 1-3 Nm
- Tightening Torque Nut: 1-3 Nm
- Protection Class: IP68
- Connectable Conductors: ≤ 0.75 mm² (AWG 20) (3-8 poles) / ≤ 0.25 mm² (AWG 24) (12-14 poles)
- Rated Current (Tamb 40 °C): 5 A (3-8 poles) / 3 A (12-14 poles)
- Rated Voltage (Pollution Degree 1): 300 V (versions 03, 04, 05-1, 06, 07) / 100 V (versions 05, 07-1, 08, 08-1) / 160 V (versions 12, 14)
- Rated Voltage (Pollution Degree 2): 250 V (versions 03, 04) / 32 V (versions 05, 07-1, 08, 08-1) / 160 V (versions 05-1, 06, 07, 12, 14)
- Rated Impulse Voltage: 1500 V (versions 03, 04, 05-1, 06, 07, 12, 14) / 500 V (versions 05, 07-1, 08, 08-1)
- Material Group: II (IEC)/1 (UL)
- Insulation Resistance: > 100 MΩ
- Packaging: Cardboard box
- Pole Numbers: 3, 4, 5, 5-1, 6, 7, 7-1, 8, 8-1, 12, 14
- Pieces Per Unit: 50
- Minimum Order Quantity: 100
