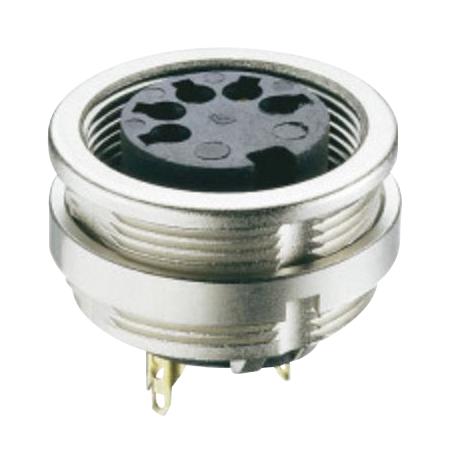

LUMBERG 030408 Threaded Circular Connector
The LUMBERG 0304 08 circular connector is a robust solution designed for demanding industrial environments. It utilizes a threaded M16 joint, ensuring a secure and reliable connection, and offers IP67/IP68 protection against dust and water ingress. The connector is designed for front mounting and utilizes solder terminals for secure electrical connections. It's ideal for applications requiring a sealed and durable connector, such as in machinery, automation systems, and outdoor equipment. Available in various pole configurations to suit diverse signal and power transmission needs.
LUMBERG 030408 Threaded Circular Connector Specifications:
- Temperature Range: −40 °C/+85 °C
- Insulating Body Material: PA GF, V-0 (UL94)
- Contact Bush Material: CuZn, silver-plated and flash gold-plated (3-8 poles) / CuZn, pre-nickel and gold-plated (12-14 poles)
- Housing Material: Zn diecast, pre-copper and nickel-plated
- Ring Screw Material: CuZn, nickel-plated
- Seal Material: CR (flat), NBR (O-ring)
- Insertion Force/Contact: ≤ 5.0 N
- Withdrawal Force/Contact: ≥ 1.2 N (3-8 poles) / ≥ 0.9 N (12-14 poles)
- Tightening Torque Connector: 1-3 Nm
- Tightening Torque Nut: 1-3 Nm
- Protection Class: IP68
- Connectable Conductor Section: ≤ 0.75 mm² (AWG 20) (3-8 poles) / ≤ 0.25 mm² (AWG 24) (12-14 poles)
- Rated Current: 5 A (Tamb 40 °C, 3-8 poles) / 3 A (Tamb 40 °C, 12-14 poles)
- Rated Voltage: 300 V (versions 03, 04, 05-1, 06, 07) / 100 V (versions 05, 07-1, 08, 08-1) / 160 V (versions 12, 14) (pollution degree 1)
- Rated Impulse Voltage: 1500 V (versions 03, 04, 05-1, 06, 07, 12, 14) / 500 V (versions 05, 07-1, 08, 08-1)
- Material Group: II (IEC) / 1 (UL)
- Insulation Resistance: > 100 MΩ
- Pole Number: 8
- Packaging: Cardboard box
- Minimum Order Quantity: 100
