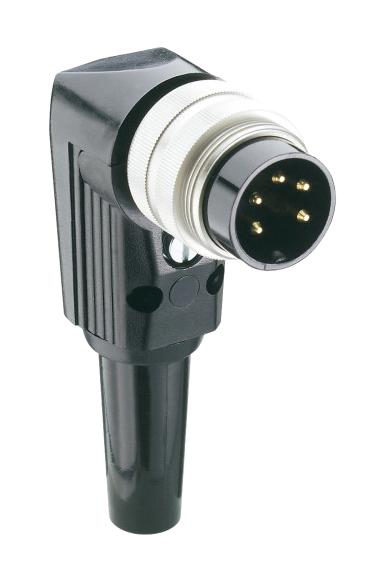

LUMBERG WSV506 Industrial Circular Connectors
Low-voltage circular connectors designed for industrial applications, featuring threaded joints according to IEC 61076-2-106. Available in multiple pole configurations from 3 to 12 poles, these connectors have IP40, IP67, and IP68 ratings for versatile environmental resilience. Constructed with metal and high-quality plastic components, they support temperature ranges from -40°C to +85°C. Suitable for soldering, they ensure secure electrical connections with sonic and mechanical stability, making them ideal for automation systems, control panels, and machinery requiring durable, reliable connectivity under various conditions.
LUMBERG WSV506 Industrial Circular Connectors Specifications:
- Flammability: V-0 according to UL94
- Contact Material: CuZn, silver-plated and flash gold-plated (3-8 poles), pre-nickel and gold-plated (12 poles)
- Temperature Rating: -40°C to +85°C
- Dimensions: Not specified, designed for industrial use with various pole configurations
- Material: PA GF plastic, steel, copper alloys
- Insulation Resistance: >100 MΩ
- Rated Voltage: 300 V (pollution degree 1, standard versions), 1500 V (version 30, 40, 50/6, all poles)
- Rated Current: 3A (12 poles), 5A (3-8 poles)
- Tightening Torque: 13 Nm
- Protection Class: IP40
- Connectors: Solder terminals, right-angle design
- Cable Diameter Range: 4-6 mm for power and signal conductors
- Overvoltage Category: II, III depending on version
- Environmental Conditions: Suitable for -40°C to +85°C with IP ratings up to 68
- Packaging: Pre-assembled in carton boxes for ease of handling
Buy the Lumberg WSV506 – Reliable Circular Connectors for Industrial Applications
Experience reliable and versatile connectivity with Lumberg WSV506 circular connectors, designed for industrial automation, machine control, and harsh environments. These high-quality connectors feature threaded joints, robust construction, and multiple configurations to meet various application needs. With IP68 and IP67 ratings, they withstand dust, moisture, and mechanical stresses, ensuring long-lasting performance. Easy to install and compatible with solder terminals, Lumberg WSV506 connectors are perfect for engineers seeking secure, durable, and flexible solutions for industrial control panels and machinery. Order online today for prompt delivery.
Get Lumberg WSV506 today—built for durability and secure power and signal connections in demanding industrial environments.
Frequently Asked Questions
Where can I buy LUMBERG WSV506?
You can click on the BUY or RFQ button to purchase WSV506 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part WSV506?
You can download the WSV506 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of WSV506?
LUMBERG
