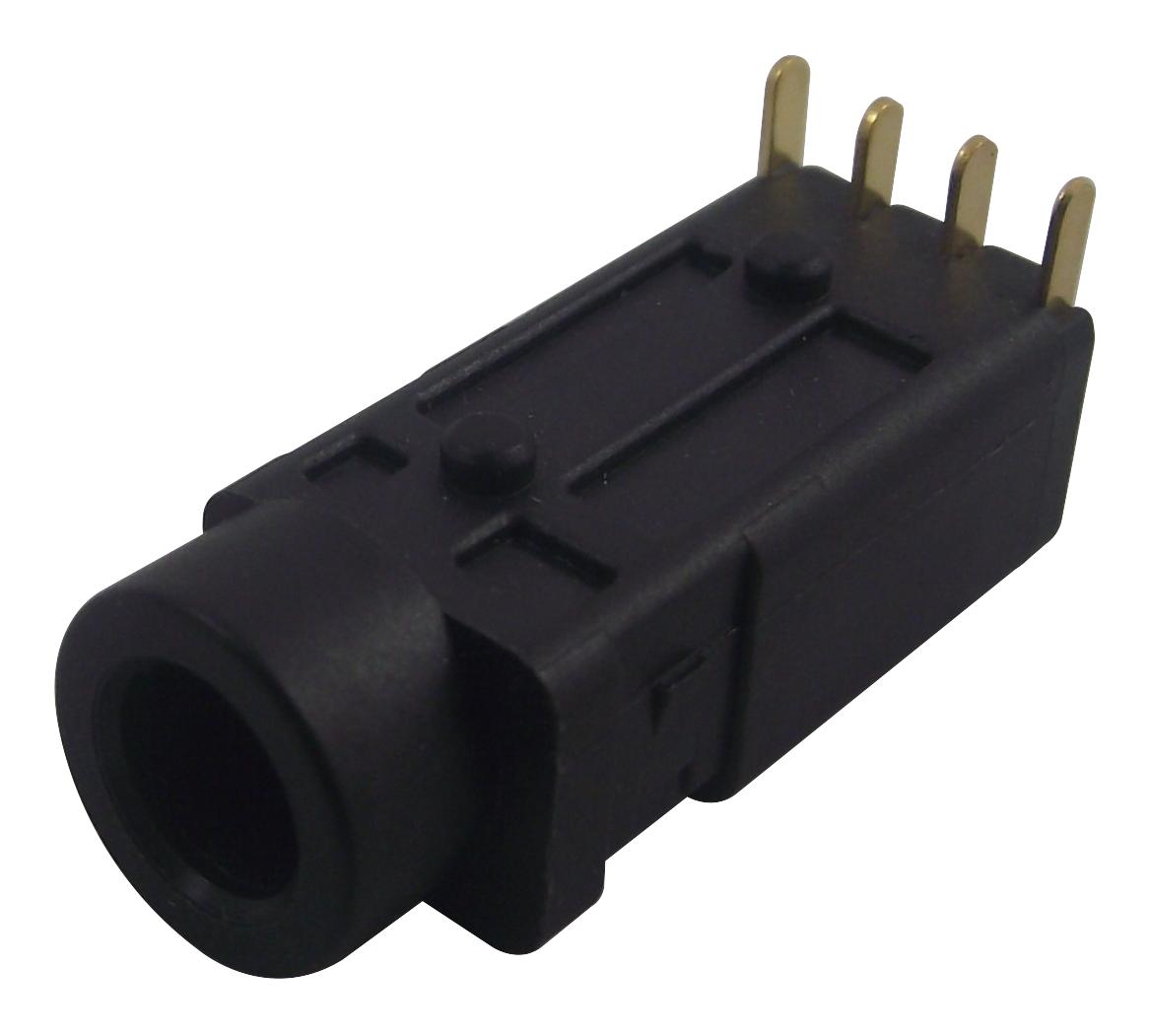

LUMBERG 150316 3.5mm Jack Connector
The LUMBERG 1503 16 is a 3.5mm jack connector conforming to the JEITA RC-5325A standard, specifically designed for applications requiring a compact and robust solution. Its angular design and potted IPx7 protection make it suitable for various industrial and consumer electronics applications. The connector boasts a gold-plated copper alloy contact, ensuring excellent electrical conductivity and corrosion resistance. With a rated current of 0.5A and a rated voltage of 34V AC/DC, it provides reliable signal transmission. The connector's mechanical strength, indicated by insertion and withdrawal forces of 5-30N, and a mating cycle rating of 5000, ensures durability and longevity in demanding environments. It is ideal for use in audio equipment, communication devices, and other applications requiring a secure and reliable connection.
LUMBERG 150316 3.5mm Jack Connector Specifications:
- Connector Type: 3.5mm Jack
- Standard: JEITA RC-5325A
- Poles: 4
- Configuration: Stereo
- Protection: IPx7
- Design: Angular
- Temperature Range: -20 °C to +70 °C
- Contact Material: Cu Alloy, Gold-Plated
- Insulating Body Material: PA
- Potting Material: Epoxy
- Insertion Force: 5–30 N
- Withdrawal Force: 5–30 N
- Mating Cycles: 5000
- Contact Resistance: ≤ 30 mΩ
- Rated Current: 0.5 A
- Rated Voltage: 34 V AC/DC
- Test Voltage: 500 V/60 s
- Insulation Resistance: ≥ 100 MΩ
