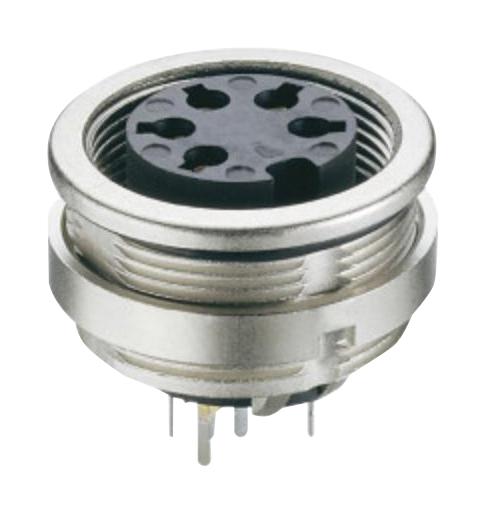

LUMBERG 0306081 Circular Threaded Connector
The LUMBERG 0306 08-1 is a robust circular connector designed for demanding industrial applications. It features a threaded M16 joint, ensuring a secure and sealed connection. The connector's housing is made of PA GF (glass-fiber reinforced Polyamide) with V-0 flammability rating, providing excellent mechanical strength and fire resistance. It is suitable for front mounting on printed circuit boards and is commonly used in automation, control systems, and other industrial equipment where reliable power and signal transmission are critical. The connector offers IP67/68 protection against dust and water ingress, making it ideal for harsh environments.
LUMBERG 0306081 Circular Threaded Connector Specifications:
- Temperature Range: -40 °C / +85 °C
- Insulating Body Material: PA GF, V-0 (UL94)
- Contact Bush Material: CuZn, silver-plated and flash gold-plated, tin-plated in solder area (3-8 poles) / CuZn, pre-nickel and gold-plated, tin-plated in solder area (12-14 poles)
- Housing Material: Zn diecast, pre-copper and nickel-plated
- Ring Screw Material: CuZn, nickel-plated
- Seal Material: CR (flat), NBR (O-ring)
- Insertion Force/Contact: ≤ 5.0 N
- Withdrawal Force/Contact: ≥ 1.2 N (3-8 poles) / ≥ 0.9 N (12-14 poles)
- Tightening Torque Connector: 1-3 Nm
- Tightening Torque Nut: 1-3 Nm
- Protection Class: IP68
- Rated Current (3-8 poles): 5 A (Tamb 40 °C)
- Rated Current (12-14 poles): 3 A (Tamb 40 °C)
- Rated Voltage (Versions 03, 04, 05-1, 06, 07): 300 V
- Rated Voltage (Versions 05, 07-1, 08, 08-1): 100 V
- Rated Voltage (Versions 12, 14): 160 V
- Rated Impulse Voltage: 1500 V
- Material Group: II (IEC) / 1 (UL)
- Insulation Resistance: > 100 MΩ
- A Dimension: 16.0 mm
- B Dimension: 17.8 mm
- Pole Options: 3, 4, 5, 6, 7, 8, 12, 14
- Packaging: Cardboard box
Buy the 0306 08-1 LUMBERG Circular Threaded Connector | myMectronic
Purchase the LUMBERG 0306 08-1 securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy LUMBERG 0306081?
You can click on the BUY or RFQ button to purchase 0306081 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part 0306081?
You can download the 0306081 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of 0306081?
LUMBERG
