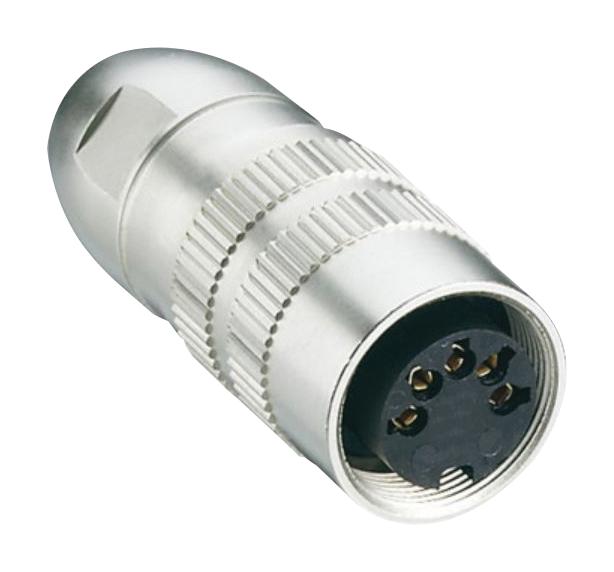

LUMBERG 032105 Industrial Circular Connector
The Lumberg E circular connectors with threaded joint are designed for industrial applications, offering IP40/IP67/IP68 protection ratings for reliable connections in challenging environments. They feature solder terminals, a durable PA GF insulating body, and copper-zinc contacts with silver and gold plating. Suitable for temperature ranges from -40°C to +85°C, they are engineered for easy assembly with specified insertion and torque requirements. These connectors support conductors up to 0.75 mm² and 4-8 mm cable diameters, rated for 5A to 3A current, and withstand voltages up to 250V. Ideal for demanding industrial automation and control systems.
LUMBERG 032105 Industrial Circular Connector Specifications:
- Temperature Range: -40°C to +85°C
- Insulating Body: PA GF, V-0 UL94
- Contact Material: CuZn, silver-plated, flash gold-plated (3-8 poles), pre-nickel and gold-plated (12-14 poles)
- Housing: CuZn, nickel-plated
- Knurled Nut: CuZn, nickel-plated
- Seal: NBR
- Insertion Force: 5.0N
- Tightening Torque: 13 Nm
- Protection Class: IP68 in locked condition
- Connectable Conductors: 0.75 mm² (3-8 poles), 0.25 mm² (12-14 poles)
- Cable Diameter: 4-8 mm
- Rated Current: 5A (3-8 poles), 3A (12-14 poles)
- Rated Voltage: 250V (main versions), 60V (others)
- Rated Impulse Voltage: 2000V
- Insulation Resistance: > 100 MΩ
Buy the Lumberg E 032105 – Reliable Industrial Connectors for Automation
Secure your industrial connections with the Lumberg E circular connector series featuring IP68/IP67 ratings, solder terminals, and durable materials suitable for harsh environments. These connectors support conductors up to 0.75 mm² and cable diameters of 4-8 mm, rated for 5A at 250V. They provide easy assembly with specified torque values and are ideal for simplifying electrical connections in automation, machinery, and control panels. Purchase online today to ensure robust, reliable connections for your industrial applications.
Buy Lumberg E 032105 now and experience unmatched reliability and performance in industrial automation and control systems.
