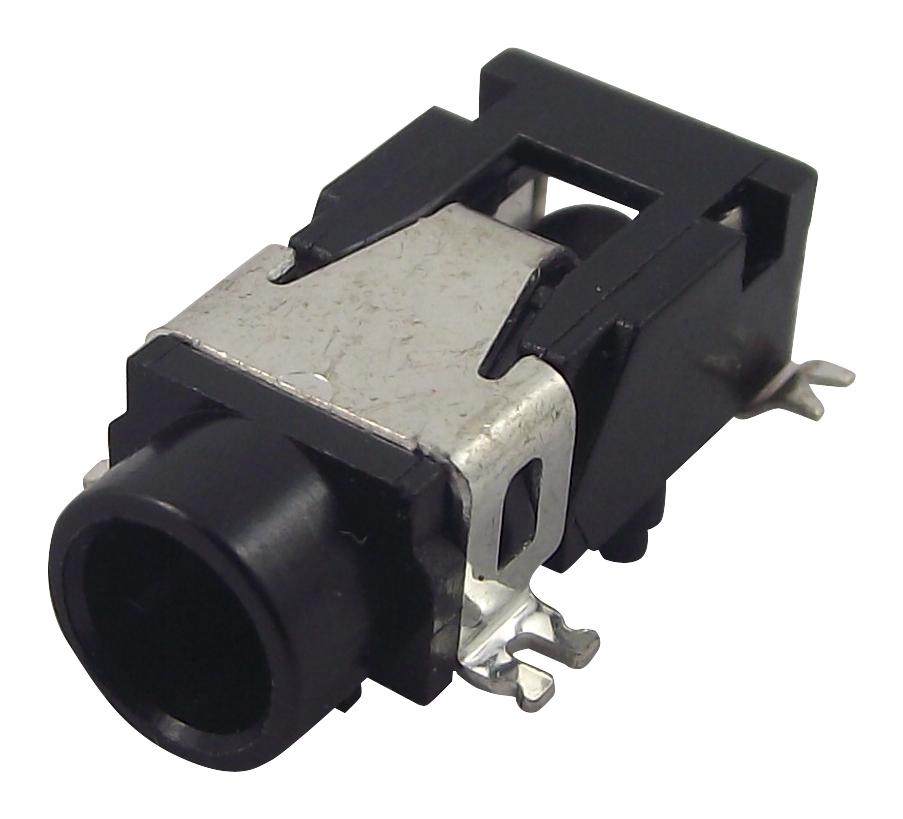

LUMBERG 150302 3.5mm Jack Connector
The LUMBERG 1503 02 is a robust 3.5mm jack connector conforming to JIS C 6560 standards. Designed for surface mount technology (SMT) and manual soldering, it offers an angular configuration ideal for space-constrained applications. Constructed with a PBT insulating body and copper alloy contacts (tinned/silvered), this connector provides reliable electrical performance and mechanical durability. It is suitable for various industrial and consumer electronics applications where a secure and compact audio or signal connection is required. Its robust design ensures consistent performance within a temperature range of -20°C to +70°C.
LUMBERG 150302 3.5mm Jack Connector Specifications:
- Temperaturbereich: -20 °C/+70 °C
- Kontaktträger: PBT, HB nach UL 94
- Kontakt: Cu-Legierung, verzinnt/versilbert
- Steckkraft: 5–30 N
- Ziehkraft: 5–30 N
- Steckzyklen: 5000
- Durchgangswiderstand: < 30 mΩ
- Bemessungsstrom: 1 A
- Bemessungspannung: 34 V AC/DC
- Prüfspannung: 500 V/60 s
- Isolationswiderstand: > 100 MΩ
- Polzahl: 3
- Verpackungseinheit: 500
