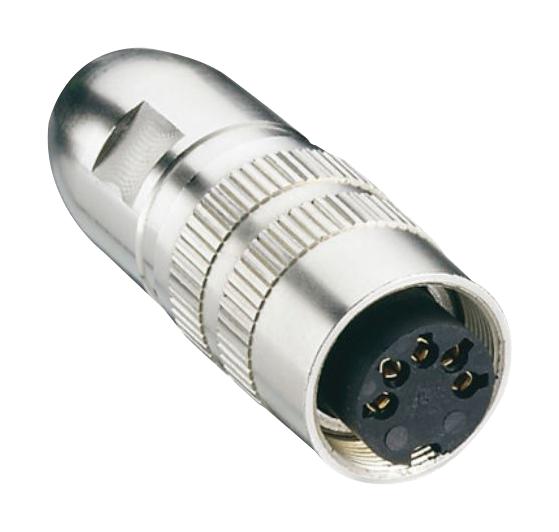

LUMBERG 032203 Circular Connector
The Lumberg E circular connector features threaded M16 joints compliant with IEC 61076-2-106 standards, with IP68 protection for reliable sealing. Crafted with a durable PA GF insulating body, it supports solder terminals and offers 360° shielding. Suitable for environments ranging from -40°C to +85°C, it includes contact bushings with silver or gold plating, housing, and knurled nuts made of CuZn, nickel-plated for corrosion resistance. Designed for electrical tasks with rated currents of 3A or 5A, rated voltages up to 250 V, and secure IP68/IP40 protection, it ensures reliable, corrosion-resistant connections in industrial settings.
LUMBERG 032203 Circular Connector Specifications:
- Ingress Protection: IP68/IP40
- Mounting Thread: M16 x 0.75
- Temperature Range: -40°C to +85°C
- Housing Material: CuZn, nickel-plated
- Insulating Body: PA GF, V-0 UL94
- Contact Material: CuZn, silver-plated and flash gold-plated (for 3-8 poles); pre-nickel and gold-plated (for 12-14 poles)
- Seal Material: NBR
- Contact Resistance: ≤5 milliohms
- Rated Current: 3A (12-14 poles), 5A (3-8 poles)
- Rated Voltage: 60 V (12-14 poles), 250 V (3-8 poles)
- Inlet Diameter for Cable: 4-8 mm
- Tightening Torque: 13 Nm
- Connection: Solder terminals, compatible with conductors 0.75 mm² (AWG 20) and 0.25 mm² (AWG 24)
- Protection Class: IP68 when locked with appropriate counterpart
Buy the Lumberg Series Connectors: Circular IP68 M16 Threaded Socket: 032203
Discover the robust Lumberg circular connector with M16 threaded joint, ideal for industrial applications requiring IP68/IP40 sealing and high durability. Featuring solder terminals, shielded design, and materials suitable for heavy-duty use, this connector ensures secure, corrosion-resistant electrical connections in harsh environments. Its operating temperature range from -40°C to +85°C makes it versatile for various settings, while its rated current and voltage handling capabilities support reliable power and signal transfer. Shop online now for industrial-grade connectivity solutions that meet demanding standards.
Buy Lumberg IP68 circular connector with M16 threaded joint and solder terminals now and experience unmatched reliability and performance in industrial environments.
Frequently Asked Questions
Where can I buy LUMBERG 032203?
You can click on the BUY or RFQ button to purchase 032203 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part 032203?
You can download the 032203 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of 032203?
LUMBERG
