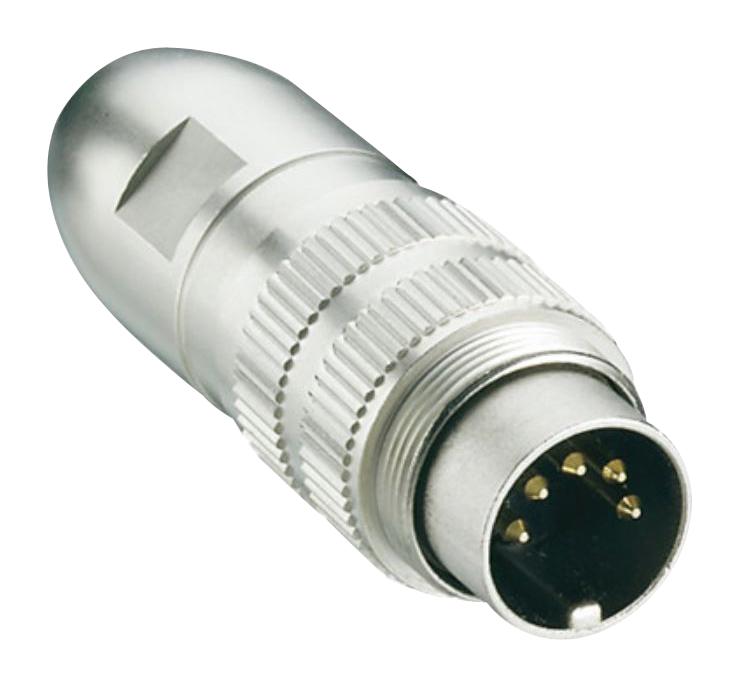

LUMBERG 033207 Threaded Circular Connector
The LUMBERG 0332 07 series circular connectors are designed for demanding industrial applications requiring a secure and reliable connection. These connectors feature a robust M16 threaded joint, providing excellent IP67/IP68 protection against dust and water ingress. The solder terminals allow for secure connections to wiring harnesses, and the shielded design minimizes electromagnetic interference. Constructed with high-quality materials like PA GF for the insulating body, CuZn for the contacts and housing, and NBR for the seal, these connectors are built to withstand harsh environments and provide long-lasting performance. They are commonly used in industrial automation, outdoor equipment, and other applications where reliability and protection are critical.
LUMBERG 033207 Threaded Circular Connector Specifications:
- Temperature Range: -40 °C / +85 °C
- Insulating Body Material: PA GF, V-0 (UL94)
- Contact Pin Material: CuZn, silver-plated and flash goldplated (3-8 poles)
- Contact Material (12-14 poles): CuZn, pre-nickel and goldplated
- Housing Material: CuZn, nickel-plated
- Seal Material: NBR
- Tightening Torque (Connector): 1-3 Nm
- Tightening Torque (Nut): 1-3 Nm
- Protection Class: IP68 (IEC DIN EN 60529)
- Rated Current (3-8 poles): 5 A (at Tamb 40 °C)
- Rated Current (12-14 poles): 3 A (at Tamb 40 °C)
- Rated Voltage (Versions 03, 04, 05-1, 06, 07): 250 V
- Rated Voltage (Versions 05, 07-1, 08, 08-1, 12, 14): 60 V
- Impulse Voltage (Versions 03, 04, 05-1, 06, 07): 2000 V
- Impulse Voltage (Versions 05, 07-1, 08, 08-1, 12, 14): 1000 V
- Insulation Resistance: > 100 MΩ
- Connectable Conductor Section (3-8 poles): ≤ 0.75 mm² (AWG 20)
- Connectable Conductor Section (12-14 poles): ≤ 0.25 mm² (AWG 24)
- Cable Diameter: 4–8 mm
- Pole Options: 3, 4, 5, 6, 7, 8, 12, 14
- Packaging: Sets of individual parts in plastic bags, in a cardboard box
