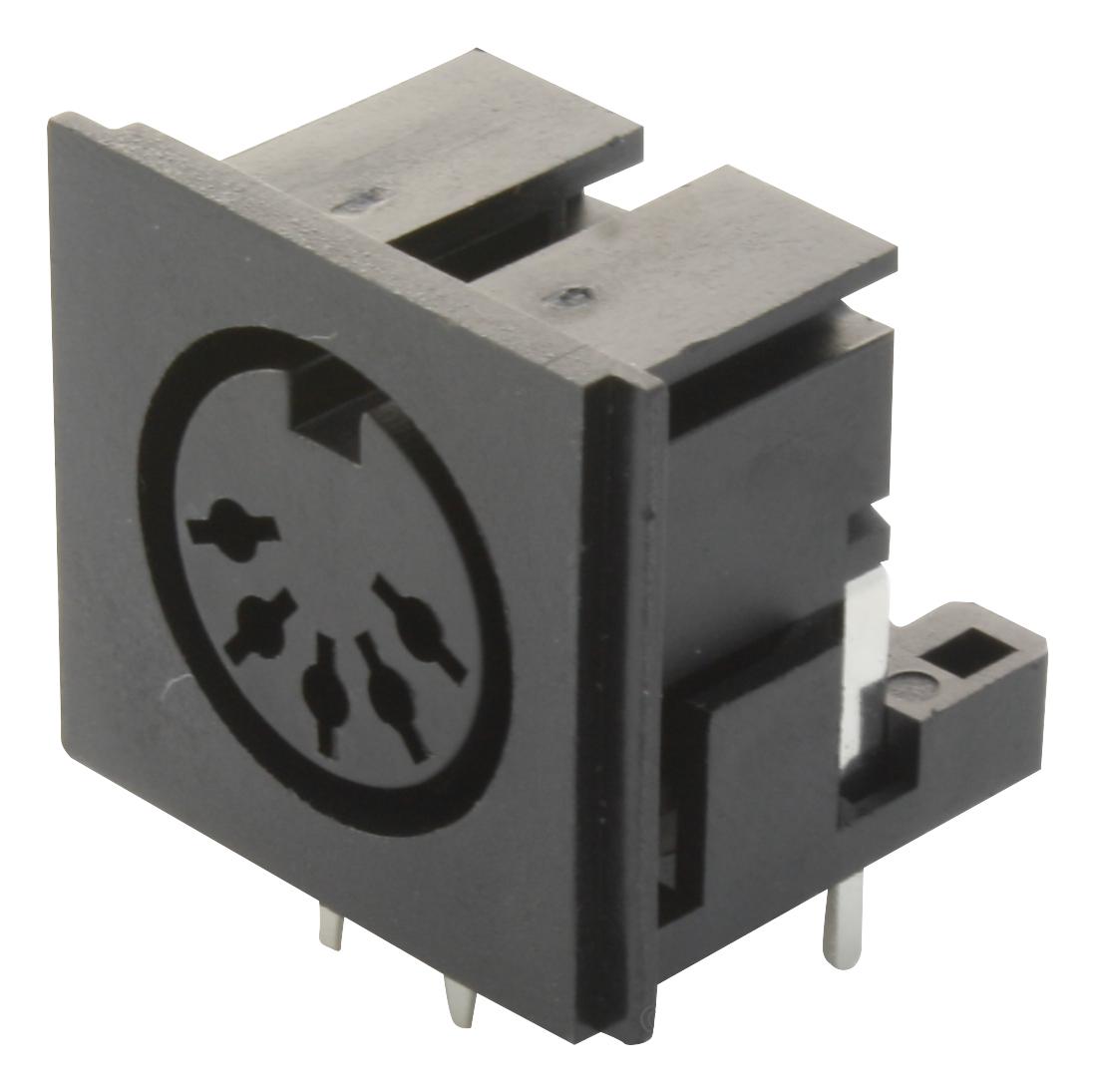

LUMBERG 010505 DIN Circular Connector
The Lumberg 0105 05 is a DIN circular connector specifically engineered for integration into printed circuit boards. Its angled design facilitates ease of use in various applications, while the integrated ground contact ensures proper grounding and safety. The connector's robust construction, utilizing PBT insulating body and CuZn contact springs, allows for a high number of mating cycles (up to 5000). It is ideal for industrial automation, control systems, and other applications requiring reliable power and signal transmission. The connector is compatible with DIN plugs 0131 and 0137, ensuring seamless integration into existing systems.
LUMBERG 010505 DIN Circular Connector Specifications:
- Temperaturbereich: -20 °C/+70 °C
- Kontaktträger: PBT, V0 nach UL 94
- Kontaktfeder: CuZn, verzinnt
- Massekontakt: CuZn, verzinnt
- Deckel: PBT, V0 nach UL 94
- Steckkraft: 4,9–49 N
- Ziehkraft: 4,9–49 N
- Steckzyklen: 5000
- Durchgangswiderstand: ≤ 30 mΩ
- Bemessungsstrom: 4 A
- Bemessungsspannung: 24 V AC
- Prüfspannung: 500 V AC/60 s
- Isolationswiderstand: ≥ 100 MΩ
- Rated current: 4 A
- Rated voltage: 24 V AC
- Test voltage: 500 V AC/60 s
- Contact resistance: ≥ 100 MΩ
- Materials: Insulating body PBT, V0 according to UL 94; Contact spring CuZn, tin-plated; Ground contact CuZn, tin-plated; Cover PBT, V0 according to UL 94
- Insertion force: 4.9–49 N
- Withdrawal force: 4.9–49 N
- Mating cycles: 5000
- distance of ground contact pins: 5 mm
