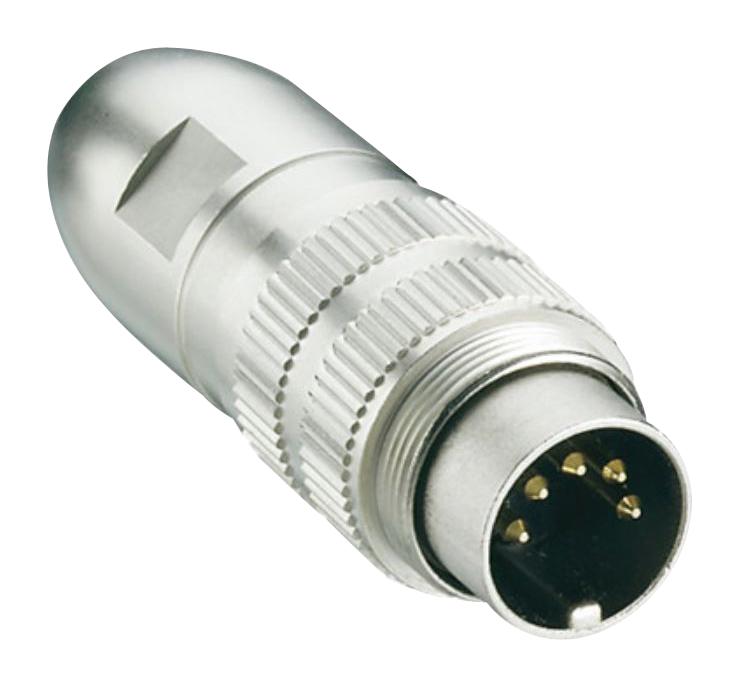

LUMBERG 033208 Threaded Circular Connector
The LUMBERG 0332 08 is a robust M16 circular connector designed for demanding industrial environments. Its threaded joint provides a secure and reliable connection, while the IP67/IP68 rating ensures protection against dust and water ingress. The connector utilizes solder terminals for establishing electrical connections, making it suitable for applications in automation, transportation, and outdoor equipment. Constructed with high-quality materials like PA GF for the insulating body and CuZn for the housing and terminals, the 0332 08 offers excellent durability and performance. It is commonly used in applications requiring reliable power and signal transmission in challenging conditions.
LUMBERG 033208 Threaded Circular Connector Specifications:
- Temperature Range: -40 °C / +85 °C
- Insulating Body Material: PA GF, V-0 (UL94)
- Contact Pin Material: CuZn, silver-plated and flash goldplated (3-8 poles)
- Housing Material: CuZn, nickel-plated
- Seal Material: NBR
- Tightening Torque (Connector): 1-3 Nm
- Tightening Torque (Nut): 1-3 Nm
- Protection Class: IP68 (IEC DIN EN 60529)
- Rated Current (3-8 poles): 5 A (at Tamb 40 °C)
- Rated Current (12-14 poles): 3 A (at Tamb 40 °C)
- Rated Voltage: 250 V (specific versions), 60 V (other versions)
- Impulse Voltage: 2000 V (specific versions), 1000 V (other versions)
- Insulation Resistance: > 100 MΩ
- Connectable Conductor Section (3-8 poles): ≤ 0.75 mm² (AWG 20)
- Connectable Conductor Section (12-14 poles): ≤ 0.25 mm² (AWG 24)
- Cable Diameter: 4–8 mm
- Packaging: Sets of individual parts in plastic bags, in a cardboard box
Buy the 0332 08 LUMBERG Threaded Circular Connector | myMectronic
Purchase the LUMBERG 0332 08 connector securely and efficiently for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy LUMBERG 033208?
You can click on the BUY or RFQ button to purchase 033208 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part 033208?
You can download the 033208 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of 033208?
LUMBERG
