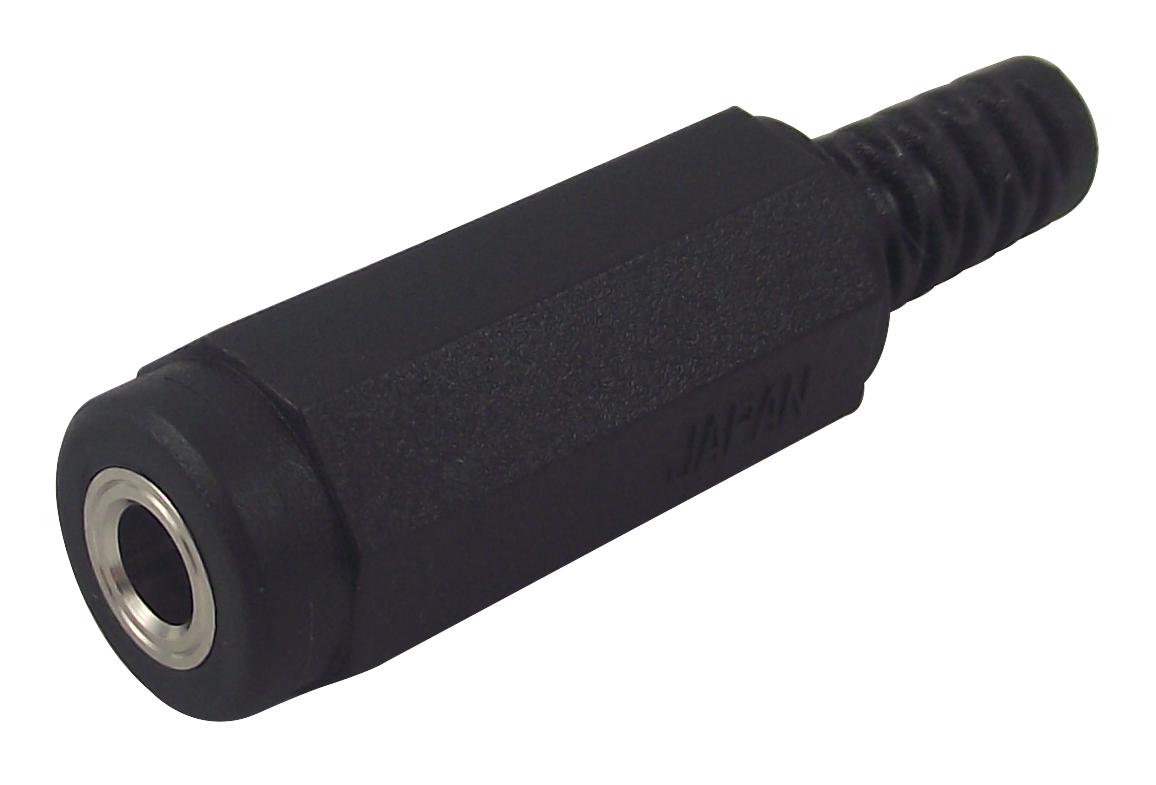

LUMBERG 152001 3.5mm Jack Connector
The LUMBERG 1520 01 is a 3.5mm jack connector designed according to JIS C 6560 standards. This connector offers a straight configuration with integrated bend protection and solder terminals for secure connections. Constructed with a PA insulating body, a nickel-plated copper alloy contact, and a PE housing, it's suitable for a variety of audio applications. It can withstand a temperature range of -10°C to +50°C, supports a current of 1A, and is rated for 3000 mating cycles. Compatible with various Lumberg connectors like 1532 01, KLS 40, KLS 41, KLS 44, and WKLS 40.
LUMBERG 152001 3.5mm Jack Connector Specifications:
- Temperature Range: -10 °C / +50 °C
- Materials - Contact Carrier: PA, HB according to UL 94
- Materials - Contact: Cu alloy, nickel-plated
- Materials - Housing: PE
- Insertion Force: 4–20 N
- Withdrawal Force: 4–20 N
- Mating Cycles: 3000
- Cable Diameter: 4 mm
- Compatible Connectors: 1532 01, KLS 40, KLS 41, KLS 44, WKLS 40
- Contact Resistance: ≤50 mΩ
- Rated Current: 1 A
- Rated Voltage: 12 V DC
- Test Voltage: 500 V/60 s
- Insulation Resistance: ≥100 MΩ
