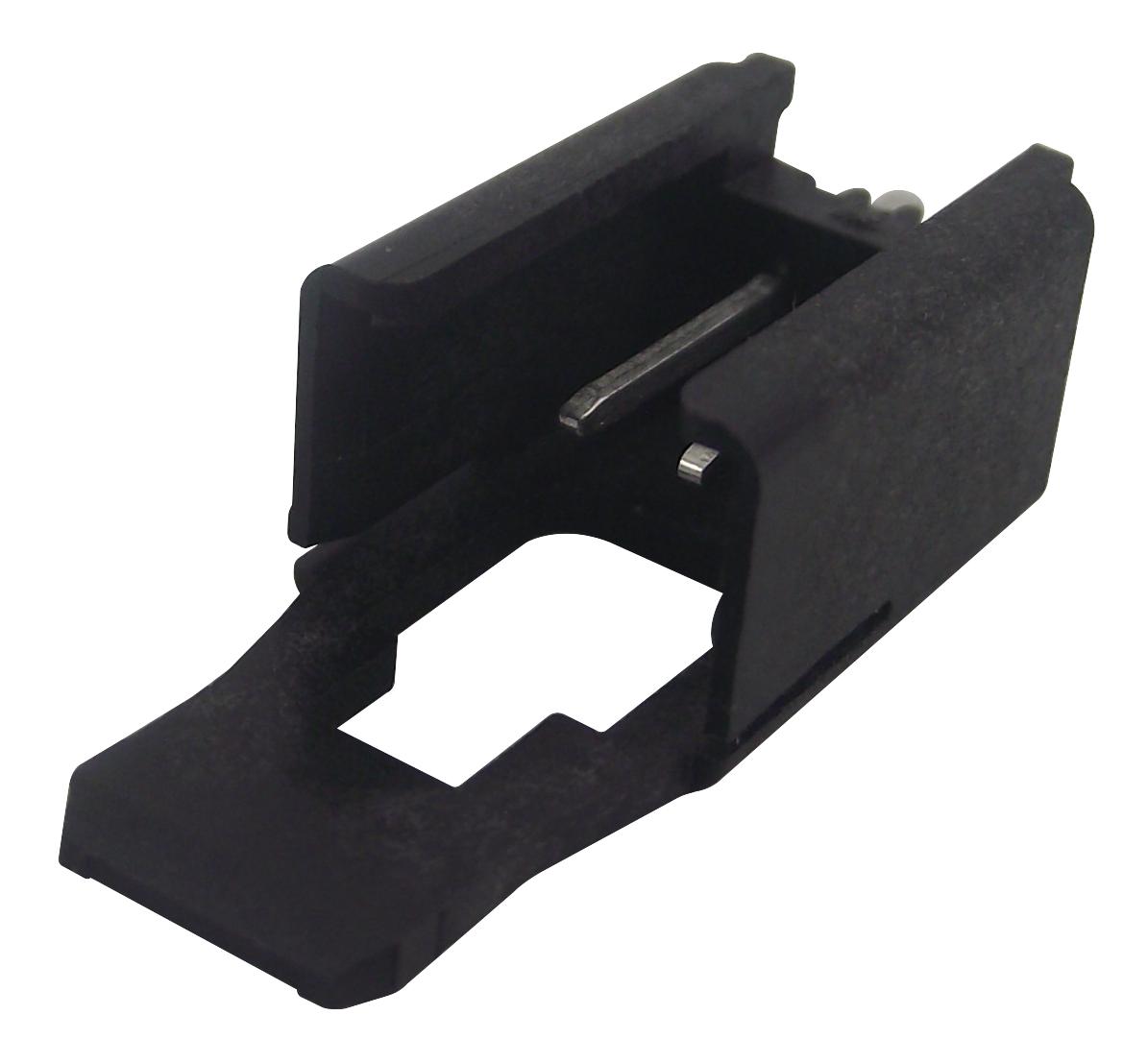

LUMBERG 25MSF02 Minimodul Pin Header
The LUMBERG 2,5 MSF 02 is a Minimodul pin header designed for compact and reliable connectivity in a variety of industrial applications. This header features a 2.5mm pitch, an upright design, and a locking latch to ensure secure connections. It utilizes solder contacts and is constructed with a PA GF V-0 insulating body and pre-nickel and tin-plated CuZn contact pins. The header is rated for a temperature range of -40°C to +120°C and supports a rated current of 5A at 60°C. It is RoHS compliant and offers excellent electrical properties, including a high insulation resistance and creepage distance.
LUMBERG 25MSF02 Minimodul Pin Header Specifications:
- temperature_range: -40 °C/+120 °C
- insulating_body_material: PA GF, V-0
- contact_pin_material: CuZn, pre-nickel and tin-plated
- rated_current: 5 A (TU 60 °C)
- rated_voltage: 160 V AC
- material_group: IIIa (IEC)/2 (UL)
- creepage_distance: 1,9 mm
- clearance: 1,9 mm
- insulation_resistance: > 1 GΩ
- pole_number: 2
- package_unit: 250 Pieces
- minimum_order_quantity: 2000 Pieces
- a_dimension: 7.9 mm
- b_dimension: 5.9 mm
- c_dimension: 4.3 mm
- d_dimension: 2.5 mm
Buy the 2,5 MSF 02 LUMBERG Minimodul Pin Header | myMectronic
Purchase the LUMBERG 2,5 MSF 02 Minimodul Pin Header securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy LUMBERG 25MSF02?
You can click on the BUY or RFQ button to purchase 25MSF02 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part 25MSF02?
You can download the 25MSF02 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of 25MSF02?
LUMBERG
