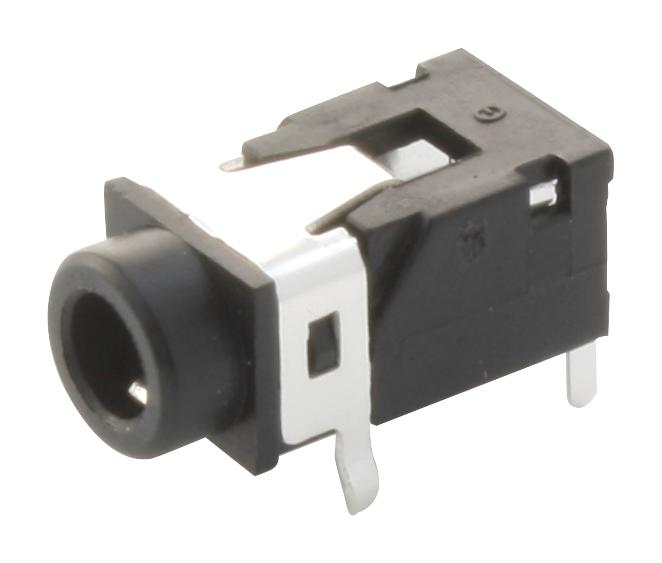

LUMBERG 150319 3.5mm Jack Connector
The Lumberg 1503 19 is a robust 3.5mm jack connector conforming to the JEITA RC-5325A standard. Designed for printed circuit board applications, this connector features an angled configuration and a 4-pole stereo design. Constructed with a PA insulating body (HB rated per UL 94) and silver-plated copper alloy contacts, it ensures reliable electrical connectivity. It's ideal for audio equipment and other applications requiring a compact and dependable connector solution. The connector's mechanical and electrical specifications guarantee consistent performance and durability.
LUMBERG 150319 3.5mm Jack Connector Specifications:
- Temperature Range: -20 °C/+70 °C
- Contact Material: Cu alloy, silver-plated
- Insulating Body Material: PA, HB per UL 94
- Insertion Force: 5.9–24.5 N
- Withdrawal Force: 5.9–24.5 N
- Mating Cycles: 5000
- Contact Resistance: ≤ 30 mΩ
- Rated Current: 1 A
- Rated Voltage: 12 V DC
- Test Voltage: 500 V AC/60 s
- Insulation Resistance: ≥ 100 MΩ
- Poles: 4
- Package Unit: 500
