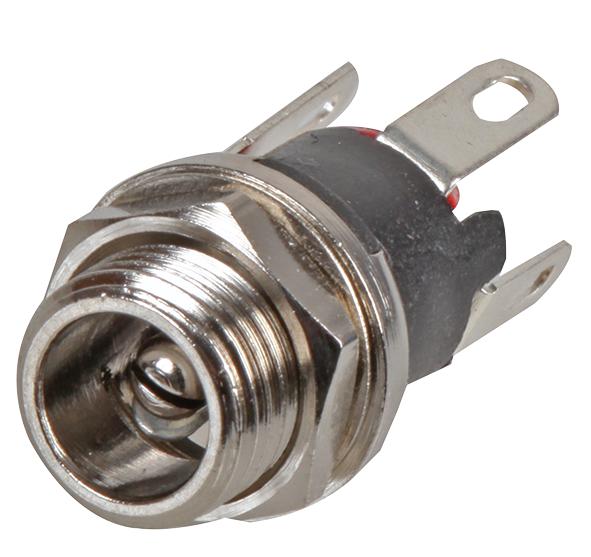

LUMBERG 161419 Power Supply Chassis Socket
The LUMBERG 1614 19 power supply chassis socket is a robust connector designed for secure and reliable power transmission. This straight version features a break contact and solder eyes for back-side mounting, making it suitable for a wide range of industrial applications. Constructed with PA insulating body, CuZn/CuSn contacts, and nickel-plated hardware, it ensures durability and excellent electrical performance. With a rated current of 0.5A and a rated voltage of 12V DC, this connector provides a dependable solution for power supply connections.
LUMBERG 161419 Power Supply Chassis Socket Specifications:
- Temperature Range: -20 °C/+70 °C
- Insulating Body Material: PA, V-0 (UL94)
- Contact Material: CuZn/CuSn, nickel-plated/silverplated
- Insulation Material: PF
- Hexagonal Nut Material: CuZn, nickel-plated
- Washer Material: Steel, nickel-plated
- Diameter Opening: 5.6 mm
- Diameter Center Pin: 2.1 mm
- Mating Cycles: ≥ 5000
- Insertion Force: ≤ 30 N
- Withdrawal Force: 3–30 N
- Contact Resistance: ≤ 50 mΩ
- Rated Current: 0.5 A
- Rated Voltage: 12 V DC
- Rated Impulse Voltage: 250 V/60 s
- Insulation Resistance: ≥ 100 MΩ
- Pole Number: 2
- Pieces Per Unit: 250
- Packaging: bulk, cardboard box or plastic bag
Buy the 1614 19 LUMBERG Power Supply Chassis Socket | myMectronic
Purchase the LUMBERG 1614 19 power supply connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy LUMBERG 161419?
You can click on the BUY or RFQ button to purchase 161419 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part 161419?
You can download the 161419 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of 161419?
LUMBERG
