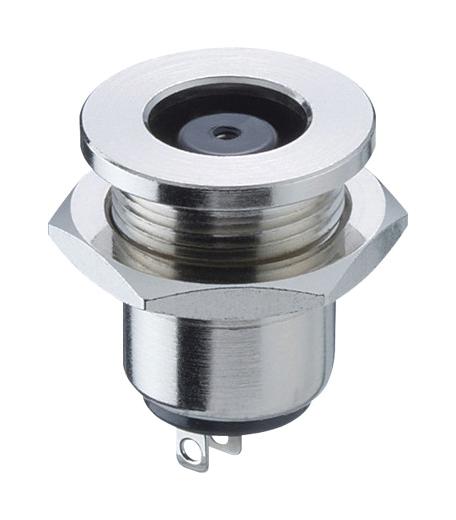

LUMBERG 161421 Power Supply Chassis Socket
The LUMBERG 1614 21 is a robust and reliable 3-pole power supply chassis socket, ideal for front-side mounting in a variety of industrial applications. Constructed with a PBT GF insulating body (V-0 rated), nickel-plated CuSn contacts, and a CuZn housing, this socket ensures excellent electrical performance and durability. It supports a rated current of 10A and a rated voltage of 24V DC, with a rated impulse voltage of 500V/60s. The socket is designed for a temperature range of -20°C to +70°C and offers a minimum of 5000 mating cycles. Packaged in bulk, it's a cost-effective solution for power supply connections.
LUMBERG 161421 Power Supply Chassis Socket Specifications:
- pole_number: 3
- temperature_range: -20 °C/+70 °C
- insulating_body_material: PBT GF, V-0 according to UL94
- contact_material: CuSn, nickel-plated
- housing_material: CuZn, nickel-plated
- hexagonal_nut_material: CuZn, nickel-plated
- diameter_opening: 8.0 mm
- diameter_insulation: 5.4 mm
- diameter_central_hole: 1.0 mm
- mating_cycles: 5000
- insertion_force: 2.9–29.4 N
- withdrawal_force: 2.9–29.4 N
- contact_resistance: ≤ 30 mΩ
- rated_current: 10 A
- rated_voltage: 24 V DC
- rated_impulse_voltage: 500 V/60 s
- insulation_resistance: ≥ 100 MΩ
- packaging: in bulk, in a cardboard box or a plastic bag
- pu_pieces: 200
- mdq_pieces: 200
