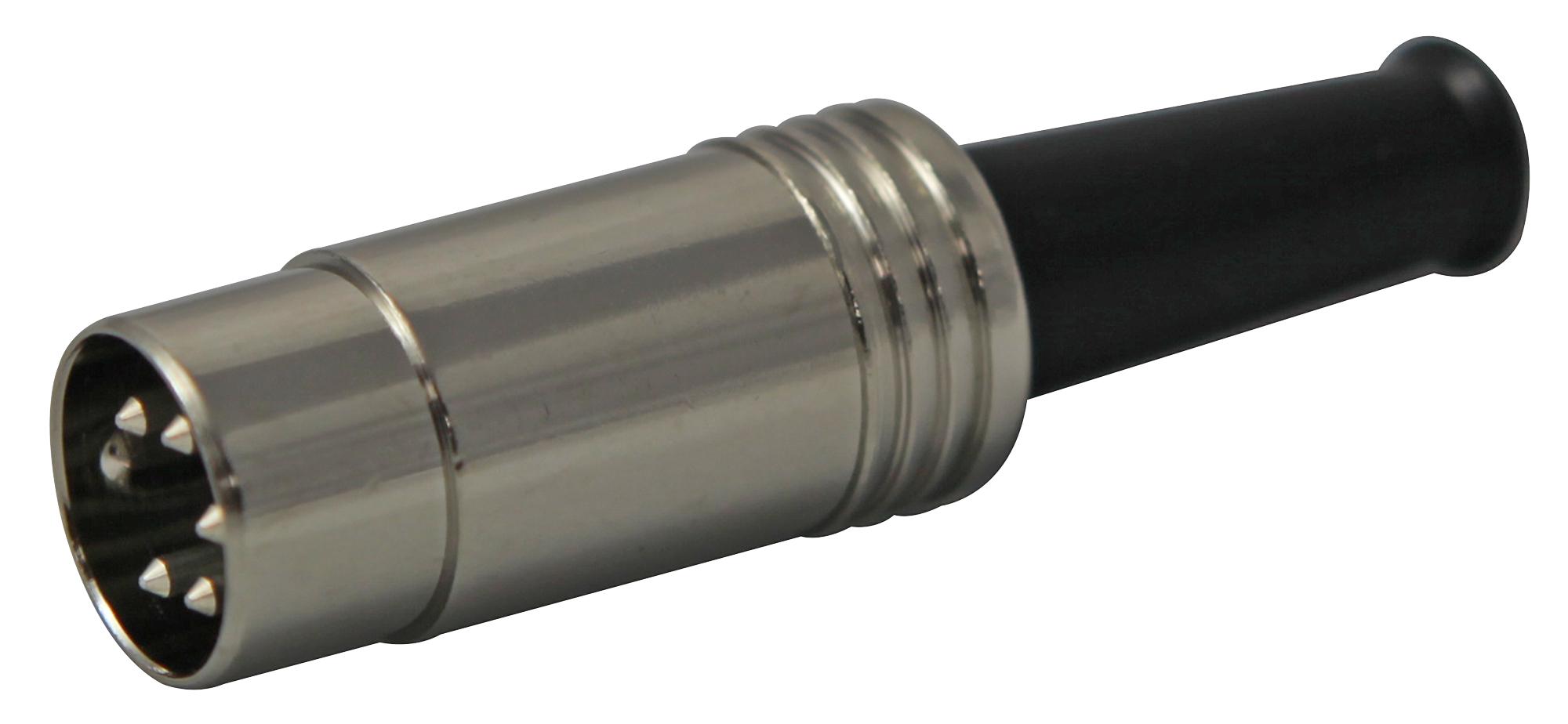

LUMBERG 0131051 DIN Circular Connector
This product is a DIN circular connector with a straight, shielded metal housing, designed for reliable electrical connections in industrial environments. It features a robust, nickel-plated CuzZn housing, a silver-plated brass contact pin, and a PA insulating body rated UL 94 VO for flammability. The connector supports soldered wiring with a maximum cross-section of AWG 18 (0.75 mm²), with a temperature range from -20 °C to +85 °C. It offers a rated current of less than 4A, a rated voltage of 100 V AC, and excellent electrical stability with low contact resistance and high insulation resistance. The connector includes bend protection Pvc, ensuring durability and strain relief for secure, long-term connections.
LUMBERG 0131051 DIN Circular Connector Specifications:
- Temperature range: -20 °C to +85 °C
- Housing: CuzZn, nickel-plated
- Insulating body: PA, VO according to UL 94
- Contact pin: brass, silver-plated
- Strain relief: steel, nickel-plated
- Screw: steel, nickel-plated
- Bend protection: Pvc
- Wire compatibility: AWG 18 (0.75 mm²)
- Rated current: <4A
- Rated voltage: 100 V AC
- Test voltage: 250 V AC RMS/60 s
- Contact resistance: <30 mΩ
- Housing contact resistance: <50 mΩ
- Insulation resistance: >100 MΩ
- Temperature operating: -20 °C to +85 °C
Buy the Buy Lumberg DIN Circular Connector Part Number 0131051 Online
Secure your industrial wiring setup with the high-quality Lumberg DIN circular connector. Featuring a metal housing, reliable solder terminals, and a temperature range from -20 °C to +85 °C, this connector is designed for durability and safety. Supports wire sizes up to AWG 18 with rated current less than 4A and rated voltage of 100 V AC. The connector’s corrosion-resistant materials, low contact resistance, and bend protection make it ideal for demanding environments. Order online now and enjoy fast, convenient delivery for your projects.
Order your Lumberg series 0131051 DIN circular connector today and ensure reliable, durable electrical connections for industrial applications.
Frequently Asked Questions
Where can I buy LUMBERG 0131051?
You can click on the BUY or RFQ button to purchase 0131051 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part 0131051?
You can download the 0131051 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of 0131051?
LUMBERG
