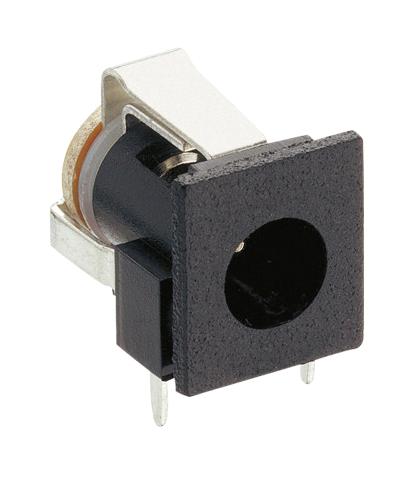

LUMBERG NEB1R Power Supply Connector
The power supply chassis socket NEB1R from Lumberg E features a DIN 45323 compliant angular design with flange and break contact, suitable for printed circuit boards. Made with CuNiSi contacts, tin-plated for reliable electrical connection, it supports up to 34V DC and is rated for 5000 mating cycles. The housing measures 66mm in diameter with a center pin diameter of 19mm, ensuring robust mechanical and electrical performance. It is ideal for industrial power supply applications requiring durable, secure connections in confined spaces.
LUMBERG NEB1R Power Supply Connector Specifications:
- Material: CuNiSi contact, tin-plated
- Housing Material: Polyoxymethylene (POM)
- Diameter opening: 66mm
- Diameter of center pin: 19mm
- Contact Pressure: 2.1N (initial), 1N after 5000 mating cycles
- Rated Voltage: 34V DC
- Rated Current: 10A
- Mating Cycles: 5000
- Compliance: DIN 45323
- Packaging: Bulk, in cardboard box or plastic bag
- Pole Number: 2
- Part Number: NEB1R
Buy the Lumberg NEB1R – Reliable Power Supply Connector for Industrial Applications
Enhance your industrial power supply systems with the durable Lumberg E NEB1R connector. Designed for PCB mounting, it features an angular housing with break contact, rated for 34V DC and with 5000 mating cycles. Made from high-quality CuNiSi contacts, tin-plated for corrosion resistance and reliable electrical connection. Its robust housing measures 66mm in diameter with a 19mm center pin, ensuring secure fit and long service life. Ideal for industrial automation, power distribution, and control systems.
Buy Lumberg NEB1R power supply connector now and experience reliable, durable PCB connections with high mating cycle life for demanding industrial environments.
Frequently Asked Questions
Where can I buy LUMBERG NEB1R?
You can click on the BUY or RFQ button to purchase NEB1R from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part NEB1R?
You can download the NEB1R datasheet or visit the LUMBERG website for support.
Who is the manufacturer of NEB1R?
LUMBERG
