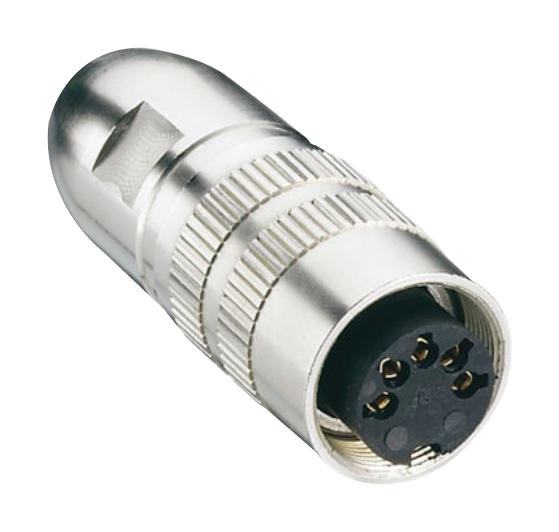

LUMBERG 032208 Circular Connector
The Lumberg E circular connectors with threaded joint M16 comply with IEC 61076-2-106 standards, offering IP40, IP67, and IP68 ingress protection. These connectors feature solder terminals, a 360° shielded design, and are constructed with durable materials including copper zinc contacts, nickel-plated housings, and V-0 rated insulating bodies. They operate efficiently within a temperature range of -40°C to +85°C, with specific mechanical and electrical specifications supporting rated currents up to 5A and voltages up to 250V. Suitable for various industrial applications requiring reliable high-quality connections.
LUMBERG 032208 Circular Connector Specifications:
- Material: Insulating body made of PA GF, V-0 UL94 rated
- Contact material: CuZn, silver-plated and flash gold-plated (3-8 poles); CuZn, pre-nickel and gold-plated (12-14 poles)
- Housing and knurled nut: CuZn, nickel-plated
- Sealing: NBR
- Temperature range: -40°C to +85°C
- Insertion force/contact: 5.0N
- Withdrawal force/contact: not specified
- Protection class: IP68 in locked condition per IEC 60529
- Cable diameter: 4-8 mm
- Rated current: 3A to 5A depending on poles
- Rated voltage: 60V to 250V depending on version
- Electrical resistance: ≤5mΩ
- Tightening torque: 13 Nm
- Connectable conductors: 0.75 mm² (3-8 poles), 0.25 mm² (12-14 poles)
Buy the Buy Lumberg E Circular Connectors Part Number 032208 Online
Enhance your industrial wiring with the high-quality Lumberg E circular connector, featuring IP68 protection, threaded M16 design, and solder terminals. Built for reliable, long-lasting connections under demanding conditions, this connector supports a temperature range from -40°C to +85°C, ensuring safe operation in diverse environments. Crafted with durable copper zinc contacts, nickel-plated housings, and a secure sealing system, it is ideal for automation, industrial equipment, and control systems. Order online today to experience seamless installation and dependable performance.
Get Lumberg E connector 032208 today—built for high durability, reliable connections, and seamless industrial performance.
Frequently Asked Questions
Where can I buy LUMBERG 032208?
You can click on the BUY or RFQ button to purchase 032208 from an authorized LUMBERG distributor.
How do I troubleshoot issues or seek technical support for part 032208?
You can download the 032208 datasheet or visit the LUMBERG website for support.
Who is the manufacturer of 032208?
LUMBERG
