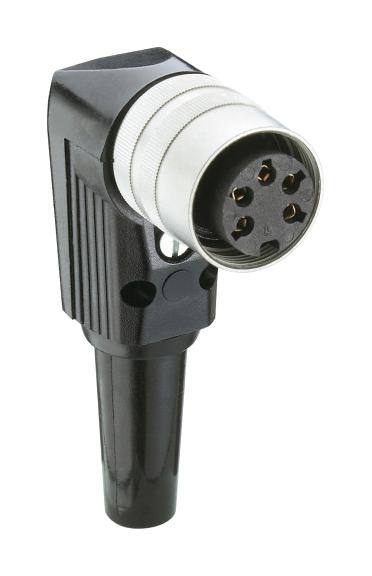

LUMBERG WKV506 Industrial Circular Connector
The WKV506 connector is a robust circular connector with a threaded joint, designed according to IEC 61076-2-106 standards. It features an IP40/IP67/IP68 protection rating, suitable for industrial environments with temperature tolerance from -40°C to +85°C. Made from high-quality materials including a PA GF insulating body, CuZn contact bushings with silver and gold plating, steel components for strain relief and sleeve, and a flame-retardant PC housing. It supports up to 12 poles, rated currents of 3 to 5 A, and voltages up to 300 V, ensuring reliable electrical connections under demanding conditions.
LUMBERG WKV506 Industrial Circular Connector Specifications:
- Material: Insulating body PA GF, V-0 UL94
- Contact bush CuZn, silver-plated, gold-plated (3-8 poles), pre-nickel and gold-plated (12 poles)
- Ground contact spring CuZn, pre-nickel, tin-plated
- Housing: PC, flame-retardant UL94
- Mechanical: Insertion force 5.0 N, withdrawal force 1.9 N (3-8 poles), 2 N (12 poles)
- Tightening torque connector +3 Nm, nut +3 Nm
- Protection class: IP40/IP67/IP68 in locked condition
- Connectable conductors: 0.75 mm² (AWG 20), 0.25 mm² (AWG 24)
- Cable diameter: 4-6 mm
- Electrical: Contact resistance 5 mΩ, rated current 3-5 A, rated voltage up to 300 V
- Overvoltage category: 1, material group II/UL A
- Temperature range: -40°C to +85°C
Buy the Lumberg WKV506 – Reliable Circular Connectors for Industrial Applications
Purchase the Lumberg WKV506 circular connector online now to ensure reliable electrical connections in industrial applications. Designed with a threaded joint, high protection ratings, and durable materials, this connector supports up to 12 poles with rated currents of 3 to 5 A. Its wide temperature range from -40°C to +85°C makes it suitable for harsh environments. Pre-assembled in a sturdy box, it guarantees quick installation and long-term performance for your automation or manufacturing projects. Buy today for dependable performance.
Order your Lumberg Series WKV506 connector today and give your projects the dependable connection quality they need for demanding industrial environments.
