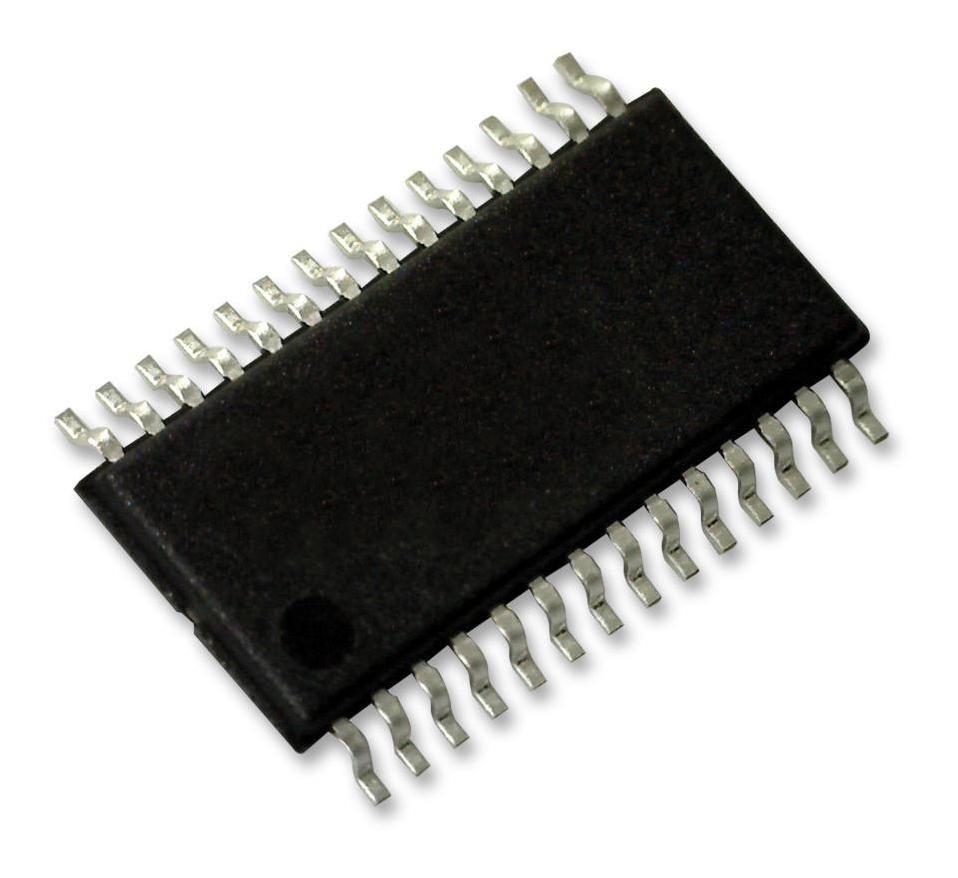

MAXIM INTEGRATED / ANALOG DEVICES DG1207EUI Dual 8-Channel Multiplexer
The DG1207EUI+ is a dual 8-channel multiplexing switch designed for low-leakage and low-charge injection, suitable for high-precision applications like automatic test equipment, data acquisition, and communication systems. It features bidirectional analog switches with rail-to-rail operation, an enable function for power saving, and operates over a temperature range of -40°C to +85°C. The device is available in 28-lead TSSOP packages, offering minimal distortion, low on-resistance, and low leakages, ensuring fast settling times and high measurement accuracy.
MAXIM INTEGRATED / ANALOG DEVICES DG1207EUI Dual 8-Channel Multiplexer Specifications:
- Number of channels: Dual 8-channel multiplexers
- Operating temperature range: -40°C to +85°C
- Supply voltage: +12V single supply, +15V bipolar supplies
- On Resistance: 100 to 250Ω (typical)
- Charge Injection: <0.5pC (typical)
- Leakage currents: 1nA max
- On-Resistance Match: 10 to 30Ω
- Capacitance: Off Capacitance ~ 15pF, On Capacitance ~ 10pF
- Power Dissipation: 1025.6mW (28 TSSOP @ 70°C)
- Soldering temperature: +260°C
- Package options: 32 TQFN, 28 TSSOP
- Low distortion, THD+N: 7% (typical at 20Hz-20kHz)
- Bandwidth: ~200 MHz
- Switching Time: 250 to 600ns (typical)
Buy the Buy Maxim Integrated DG1207EUI+ Dual 8-Channel Multiplexer Online
Purchase the Maxim DG1207EUI+ dual 8-channel analog multiplexer online today and unlock reliable high-performance switching for sensitive measurement systems. This device features ultra-low leakages, low charge injection, and rail-to-rail operation, making it ideal for automatic test equipment, data acquisition, and communication systems. Its robust design ensures fast transition times, minimal distortion, and excellent precision. Order now to enhance your system with high-accuracy switching components that deliver consistent results in critical applications.
Buy Maxim Integrated DG1207EUI+ dual 8-channel multiplexing switch now and experience unmatched low leakage, high accuracy, and fast switching for your precision applications.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES DG1207EUI?
You can click on the BUY or RFQ button to purchase DG1207EUI from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part DG1207EUI?
You can download the DG1207EUI datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of DG1207EUI?
MAXIM INTEGRATED / ANALOG DEVICES
