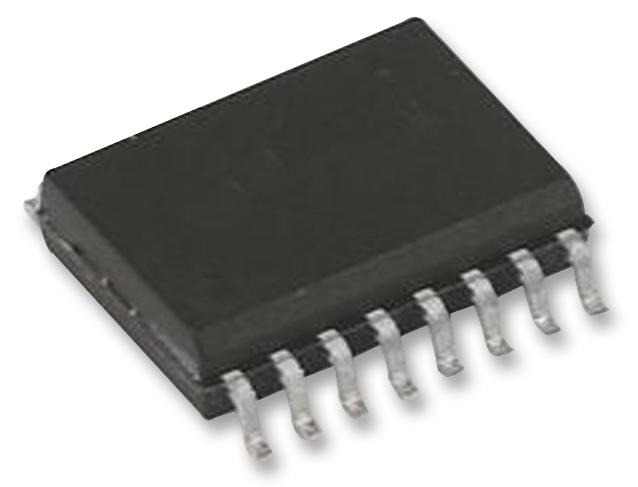

MAXIM INTEGRATED / ANALOG DEVICES DS1232LPS Microcontroller Monitor
The DS1232LPS+ is a low-power microcontroller monitoring IC housed in a 16-pin WSOIC package. It provides comprehensive system supervision by monitoring power supply voltage, software execution, and external override inputs. The device features a precision, temperature-compensated voltage reference and comparator that oversee VCC status. When an out-of-tolerance condition is detected, it triggers an internal power-fail signal to reset the microprocessor, maintaining the reset state for at least 250ms after VCC returns to normal to ensure system stability. Additionally, it offers pushbutton reset control with debouncing and a minimum pulse width of 250ms, and a watchdog timer with adjustable timeout settings (150ms, 600ms, 1.2s) to automatically reset the system if the software becomes unresponsive. Operating within a voltage range of 4.5V to 5.5V and a temperature range of 0°C to 70°C, it features a VCC trip point at approximately 4.37V and 4.62V. The device can restart a microprocessor after power failure, monitor external overrides, and halt or restart an unresponsive system. It outputs up to 10mA at a voltage of 0.4V, consumes 0.2mA in operation, and has input and output capacitances of 5pF and 7pF respectively. This chip is intended for system monitoring applications but warning: due to high market demand, lead times may be extended, and delivery dates are not guaranteed. It is not eligible for discounts.
MAXIM INTEGRATED / ANALOG DEVICES DS1232LPS Microcontroller Monitor Specifications:
- Supply Voltage: 4.5V to 5.5V
- Operating Temperature: 0°C to 70°C
- Power-Fail Detection: VCC at approximately 4.37V and 4.62V trip points
- Reset Output: Active High and Active Low (open drain)
- Pushbutton Reset: Debounced with at least 250ms pulse width
- Watchdog Timer: 150ms, 600ms, 1.2 seconds optional timeout
- Maximum Output Current: 10mA at 0.4V
- Supply Current: 0.2mA typical
- Input Capacitance: 5pF
- Output Capacitance: 7pF
- Package: 16-pin WSOIC
- Temperature Tolerance: Industrial class, -40°C to +85°C depending on version
