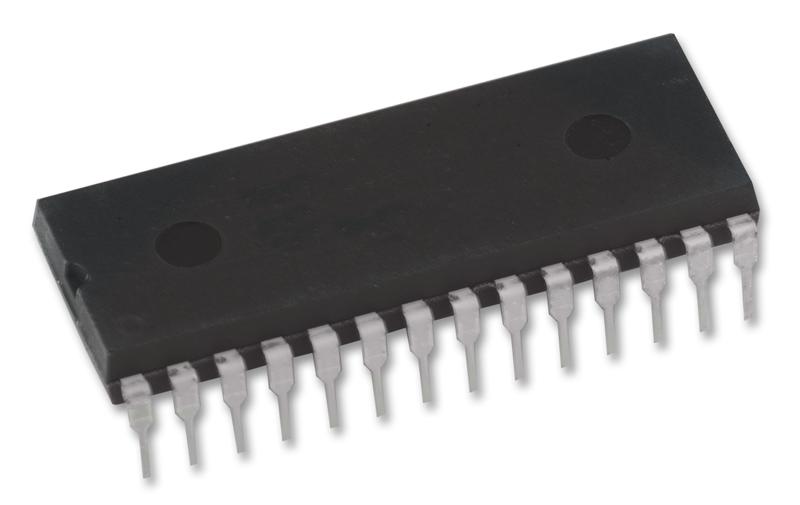

MAXIM INTEGRATED / ANALOG DEVICES DG507ACJ 8-Channel Differential Multiplexer
The DG507ACJ+ is a monolithic CMOS analog multiplexer housed in a 28-pin DIP package. It features an 8-channel differential configuration (2 of 16) that does not latch up if the power supply is turned off while the input signal remains, provided absolute maximum ratings are observed. The device consumes significantly less power, making it suitable for portable equipment. It operates with a supply voltage range of ±4.5V to ±18V and a temperature range from 0°C to 70°C. The switch employs break-before-make switching, has an improved second source, and is pin-compatible with parts from Harris, Siliconix, and Renesas. It offers symmetrical, bidirectional operation with logic and enable inputs compatible with TTL and CMOS levels. The construction is latch-up proof, utilizing a low-power CMOS design.
MAXIM INTEGRATED / ANALOG DEVICES DG507ACJ 8-Channel Differential Multiplexer Specifications:
- Supply Voltage Range: ±4.5V to ±18V
- Temperature Range: 0°C to 70°C
- Channels: 8 differential (2 of 16)
- Break-before-make switching
- Latch-up proof CMOS construction
- Bidirectional operation
- Logic Inputs: TTL and CMOS compatible
- Enable Input
- Package: 28-pin DIP
- Power Consumption: Significantly reduced for portable applications
- Operating mode: Differential, impedance around 400Ω at switch on
- Leakage Current: Typically ±10nA at supply voltage
- Switching Time: Approx. 0.6μs (typical)
- Maximum Signal Range: ±15V
- Pin Compatibility: Harris, Siliconix, Renesas parts
Buy the Buy Maxim DG507ACJ Monolithic CMOS Analog Multiplexer Part Number DG507ACJ Online
Purchase the Maxim DG507ACJ today, a high-performance 8-channel differential CMOS analog multiplexer designed for portable and control systems. It features low power consumption, break-before-make switching, and bidirectional operation, ideal for data logging, aircraft displays, and signal routing. Its robust construction prevents latch-up during power-off conditions, ensuring reliable operation. The device is compatible with TTL and CMOS logic levels and offers a wide supply voltage range of ±4.5V to ±18V. Perfect for engineers requiring durability, precision, and efficient signal management in compact applications.
Get Maxim DG507ACJ today—designed for low power, differential switching, and high reliability in portable control and data acquisition systems.
