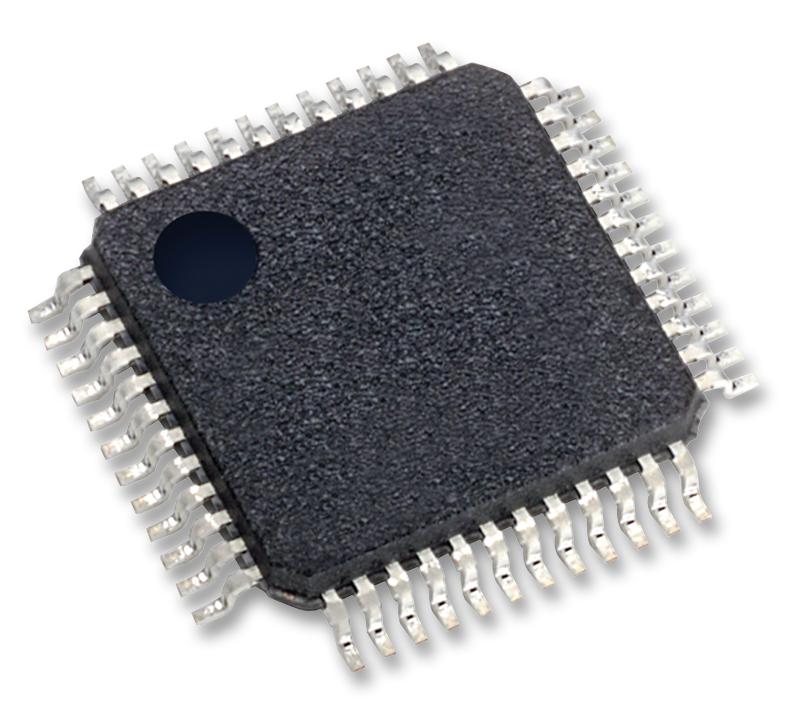

MAXIM INTEGRATED / ANALOG DEVICES MAX1186ECMD High-Speed Differential ADC
The MAX1186ECM+D is a dual 10-bit, 40Msps, low-power analog-to-digital converter operating at 3V. It features internal reference, multiplexed digital outputs, fully differential wideband track-and-hold inputs, and pipelined nine-stage ADC architecture. Consuming only 105mW, it provides a typical SNR of 59.4dB at 20MHz input frequency. Supports single-ended and differential inputs, with on-chip 400MHz amplifiers, configurable output formats (two's complement or offset binary), and a wide input voltage range of ±1Vp-p. Ideal for imaging, instrumentation, and digital communication applications, it operates from -40°C to 85°C with supply voltage of 2.7V to 3.6V. Features include low power sleep/shutdown modes, excellent dynamic performance, and wide bandwidth input of 400MHz.
MAXIM INTEGRATED / ANALOG DEVICES MAX1186ECMD High-Speed Differential ADC Specifications:
- Resolution: 10 Bits
- Sampling Rate: 40Msps
- Supply Voltage: 3V (2.7V to 3.6V range)
- Power Consumption: 105mW typical
- Signal-to-Noise Ratio: 59.4dB at 20MHz input
- Input Bandwidth: 400MHz, -3dB
- Input Range: ±1Vp-p differential
- Input Types: Differential and Single-ended
- Input Capacitance: 5pF
- Reference: Internal 2.048V bandgap, external reference capable
- Digital Outputs: Multiplexed, CMOS-compatible, three-state, configurable format (two's complement or offset binary)
- Operation Temperature Range: -40°C to 85°C
- Power Modes: Sleep (2.8mA), Power-down (1µA)
- Input Voltage Range: 2.7V to 3.6V
- Package: 48-pin TQFP with exposed paddle
