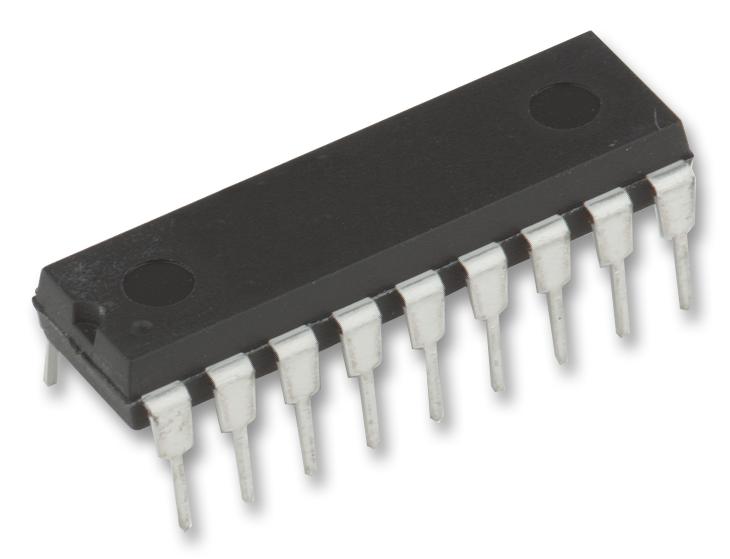

MAXIM INTEGRATED / ANALOG DEVICES DG528CJ 8-channel multiplexer
The DG528CJ+ is a low-power, monolithic CMOS 8-channel multiplexer with onboard address and control latches, suitable for microprocessor-based and data acquisition systems. It supports single-ended operation or differential switching, with break-before-make switching to prevent signal shorts. Operating from +5V to +30V or ±4.5V to ±20V supplies, it features TTL and CMOS compatibility, low ON resistance, and a wide temperature range of 0°C to 70°C. Widely used in test equipment, signal routing, and communication systems, this device ensures reliable, efficient multiplexing in complex electronic applications.
MAXIM INTEGRATED / ANALOG DEVICES DG528CJ 8-channel multiplexer Specifications:
- Package: 18-pin DIP
- Operating Temperature: 0°C to 70°C
- Supply Voltage Range: +5V to +30V or ±4.5V to ±20V
- On-Resistance: Max 450 ohms at 25°C
- Break-Before-Make Switching: 0.2 μs typical
- Charge Injection: 4 pC
- Off-Isolation: 68 dB
- Leakage Currents: Source off -0.005 nA, Drain off -0.015 nA at 25°C
- Drain on-leakage: -0.03 nA at 25°C
- Pin Compatibility: Industry-standard with DG528 and ADG528
- Logic Compatibility: TTL and CMOS
- Transistor Count: Approximately 200
- Materials: CMOS, monolithic design
- Application Range: Data acquisition, automatic test equipment, avionics, microprocessor systems, signal routing
- Durability: Soldered leads, suitable for extended operational environments
Buy the Maxim Series DG528 Multiplexer: DG528CJ
Purchase the Maxim Series DG528CJ today through our online store. Designed for microprocessor and data acquisition applications, this 8-channel CMOS multiplexer with onboard latches offers low ON resistance, wide voltage operation, and excellent signal integrity. Its compatibility with TTL and CMOS logic levels makes integration seamless in complex systems. With an operating temperature of 0°C to 70°C and reliability proven in multiple industries, it's the ideal choice for engineers seeking performance and ease of use in signal switching, test equipment, and communication applications.
Buy Maxim Series DG528CJ now and experience unmatched reliability, low power consumption, and efficient signal multiplexing for your electronic projects.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES DG528CJ?
You can click on the BUY or RFQ button to purchase DG528CJ from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part DG528CJ?
You can download the DG528CJ datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of DG528CJ?
MAXIM INTEGRATED / ANALOG DEVICES
