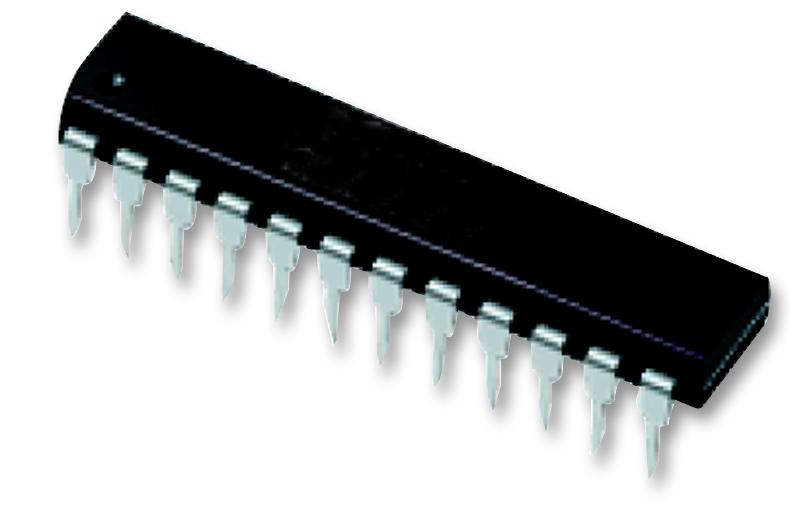

MAXIM INTEGRATED / ANALOG DEVICES MAX530BCNG Low-Power DAC
The MAX530BCNG+ is a low-power, 12-bit digital-to-analog converter in a 24-pin DIP package, operating on a single 5V or dual ±5V supplies. It features an on-chip voltage reference, output buffer amplifier, and laser-trimmed 12-bit resolution. Consuming only 250 µA, it is ideal for portable and battery-powered applications. The device supports output ranges of 0V to 2.048V, 0V to 4.096V, or ±2.048V, with internal gain setting resistors. Double-buffered parallel inputs are compatible with microprocessors, with features like monotonicity, power-on reset, and shutdown mode.
MAXIM INTEGRATED / ANALOG DEVICES MAX530BCNG Low-Power DAC Specifications:
- Resolution: 12 Bits
- Supply Voltage Range: 4.5V to 5.5V
- Operation Temperature: 0°C to 70°C
- Power Consumption: 250 µA at 5V
- Output Voltage Range: 0V to 2.048V, 0V to 4.096V, or ±2.048V via gain resistors
- Monotonic over temperature
- Accuracy: Max ±1 LSB
- Reference Voltage: On-chip 2.048V, external option available
- Parallel input interface: double-buffered, compatible with 4, 8, 16-bit microprocessors
- Features: Power-on reset, shutdown mode (40 µA)
- Output buffer: unity-gain stable, capable of driving 2kΩ loads
Buy the MAXIM MAX530BCNG Low-Power Digital-to-Analog Converter for Industrial Applications
Enhance your electronic systems with the MAXIM MAX530BCNG low-power digital-to-analog converter. Featuring 12-bit resolution, on-chip reference, and flexible voltage ranges, it’s perfect for portable and low-power applications. The device offers double-buffered parallel inputs compatible with multiple microprocessor bit widths, ensuring seamless integration. Its low current consumption of just 250 microamps makes it ideal for battery-powered setups. With features like monotonicity and power-on reset, the MAX530BCNG guarantees high accuracy and reliable performance in demanding industrial and automation environments.
Buy MAXIM MAX530BCNG now and experience unmatched reliability and performance in portable and microprocessor-controlled systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX530BCNG?
You can click on the BUY or RFQ button to purchase MAX530BCNG from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX530BCNG?
You can download the MAX530BCNG datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX530BCNG?
MAXIM INTEGRATED / ANALOG DEVICES
