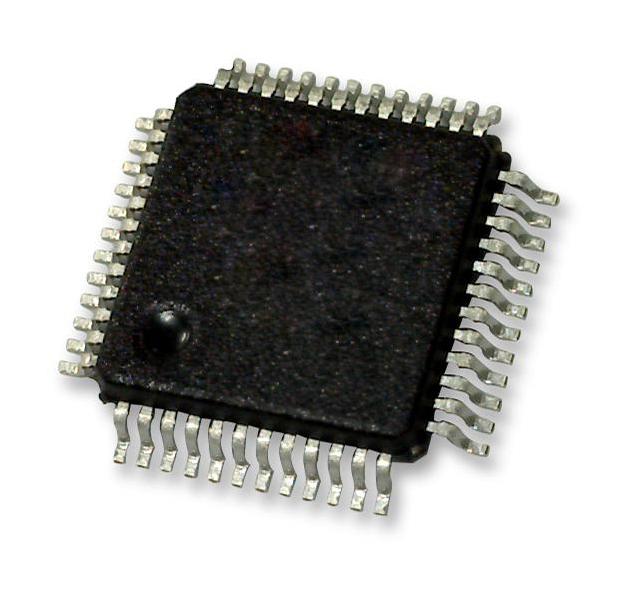

MAXIM INTEGRATED / ANALOG DEVICES MAX9217ECM LVDS Serializer
The MAX9217 is a 27-bit, DC-balanced LVDS serializer designed for high-speed digital video applications. Operating from a 3.3V core supply and supporting input logic levels from 1.8V to 3.3V, it serializes 18 bits of parallel video data or 9 bits of control data at clock frequencies from 3MHz to 35MHz. Its proprietary encoding reduces EMI and ensures DC balance for reliable, EMI-compliant transmission over twisted-pair cables. Features include integrated output termination, common-mode filtering, and robust ESD protection, making it suitable for automotive, video, and industrial systems requiring high data integrity and low electromagnetic interference.
MAXIM INTEGRATED / ANALOG DEVICES MAX9217ECM LVDS Serializer Specifications:
- Operating voltage: 3.3V core, 1.8V to 3.3V input logic interface
- Data serialization rate: 3MHz to 35MHz supporting 20-bit serial word
- Input data bits: 18 video or 9 control bits with encoding for DC balance
- Output: Differential LVDS, 100Ω termination resistor integrated
- ESD protection: ISO 10605, ±10kV contact and ±30kV air discharge
- Package: 48-pin Thin QFN and LQFP packages, operating temperature from -40°C to +85°C
- Differential output voltage: 250mV to 450mV, typical 335mV
- Differential output resistance: 78Ω to 147Ω
- Power dissipation: 1739mW (LOFP), 2963mW (Thin QFN) at +70°C
- Supports AC coupling with external capacitors, suitable for long-distance video signal transmission
- Lock time: approximately 16,385 PCLK_IN cycles; Power-down reduces current to <50μA
- Input buffer: LVTTL/LVCMOS compatible, with dedicated supply and bypass capacitors
- Application: Digital video links, automotive in-vehicle entertainment, industrial communication
