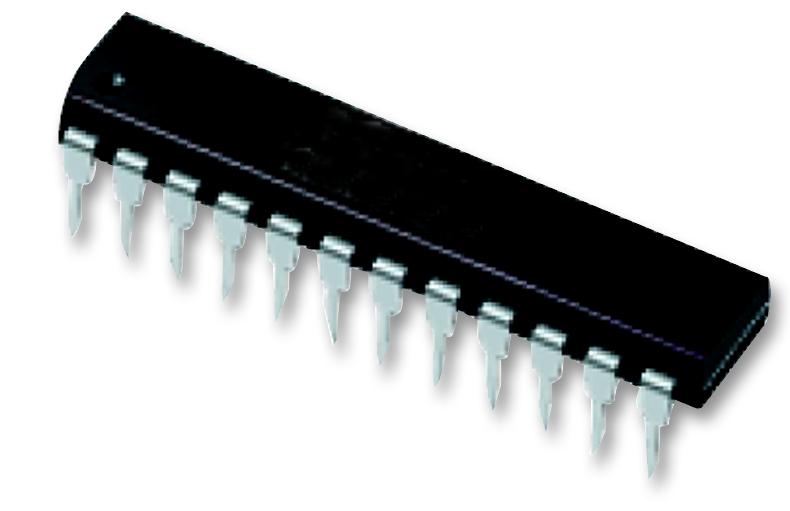

MAXIM INTEGRATED / ANALOG DEVICES DS1220AD100 Non-volatile SRAM
The DS1220AD-100+ is a 16K (16,384 bit) non-volatile static RAM (NVSRAM) in a 24-pin EDIP package. It features organized memory of 2,048 words by 8 bits each, and includes a self-contained lithium energy source with control circuitry that monitors the supply voltage (VCC) for out-of-tolerance conditions. In such events, the lithium battery is automatically activated to preserve data integrity, and write protection is enabled to prevent data corruption. The battery is electrically disconnected when not in use to maintain its freshness until the device is powered on. This NVSRAM can directly replace existing 2K x 8 SRAMs in 24-pin DIP packages, and its pinout matches 2716 EPROM and 2816 EEPROM devices for seamless substitution. It offers unlimited write cycles and requires no additional circuitry for microprocessor interfacing. Operating on a supply voltage range of 4.5V to 5.5V and functioning within 0°C to 70°C, it provides a minimum of 10 years data retention without external power. The device supports data protection during power loss, uses low-power CMOS technology, and has a read/write access time of 100ns. Write protection is enabled at a voltage of 4.37V, and the input/output capacitance is approximately 5pF.
MAXIM INTEGRATED / ANALOG DEVICES DS1220AD100 Non-volatile SRAM Specifications:
- Memory Capacity: 16,384 bits (16K)
- Organization: 2,048 words by 8 bits
- Package: 24-pin EDIP
- Supply Voltage Range: 4.5V to 5.5V
- Operating Temperature: 0°C to 70°C
- Data Retention: Minimum 10 years without power
- Access Time: 100 ns
- Write Cycles: Unlimited
- Lithium Battery: Self-contained, automatically activated during power loss
- Battery Disconnect: Maintains freshness until powered on
- Compatibility: Direct replacement for 2K x 8 SRAM, matches 2716 EPROM and 2816 EEPROM pinouts
- Input/Output Capacitance: Approximately 5 pF
- Technology: Low-power CMOS
- Data Protection: During power loss, with automatic write protection
Buy the Maxim Series NVSRAM: 16K Non-Volatile SRAM DS1220AD100
Order the Maxim DS1220AD100 online today to ensure your systems benefit from 16K non-volatile static RAM with 10 years data retention, unlimited write cycles, and fast 100ns access times. This easy-to-integrate memory offers automatic power-fail data protection, self-contained lithium backup, and compatibility with standard 24-pin DIP packages, making it ideal for reliable data storage in industrial and embedded applications. Purchase now for secure, high-performance memory with no extra support circuitry required, ensuring your device maintains data integrity even during power outages.
Buy Maxim DS1220AD100 now and benefit from reliable data retention and seamless microprocessor interface without additional circuitry.
